Product Details:
Payment & Shipping Terms:
|
| Model: | LW-OF3.91 | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Pixel Density: | 65,536 Dots /sqm | LED Lamp: | SMD1921 |
| Module Size(W*H): | 250 Mm(width)*250 Mm(height) | Module Pixels(W*H): | 64 Dots *64 Dots |
| Pixel Configuration: | 1Red 1Green 1Blue | Cabinet Size(W*H*D): | 500mm*500mm |
| Net Weight: | 10Kg / Cabinet | Cabinet Resolution: | 128*128 Dots |
| High Light: | Stage Led Screen,Led Stage Backdrop Screen |
||
P3.91 Indoor led video dance floor display with sensing chip for wedding party
Floor led display application technology:
The 2019 Spring Festival gala opening ceremony with interactive human screen technology,
Human screen interaction will bring users more realistic scene-based experience. People will unconsciously immersed under this scenario, the feelings and emotions into the screen, MeiLuoWei, had pointed out in the media scene theory: new technology to create a new situation, and ultimately change to influence people's social interaction in the real world, so does people can use screen interactions to create a new future scenarios to reconstruct a scene of life?
P3.91 Indoor led video dance floor display feature:
P3.91 Indoor led video dance floor display parameter:
| P3.91 Indoor led video dance floor | |
| Model | LW-OF3.91 |
| Pixel pitch | 3.91mm |
| Pixel density | 65,536 dots /sqm |
| LED Lamp | SMD1921 |
| Module size(W*H) | 250 mm(width)*250 mm(height) |
| Module pixels(W*H) | 64 dots *64 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Cabinet size(W*H*D) | 500mm*500mm |
| Net weight | 10Kg / cabinet |
| Cabinet resolution | 128*128 dots |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Power consumption(one cabinet) | Max:200W / cabinet , Average: 80W / cabinet |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Inputting voltage | 90-264VAC 47--63Hz |
| LED control system | LINSN,Nova-star,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP54 |
| Maintenance way | Rear Access |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

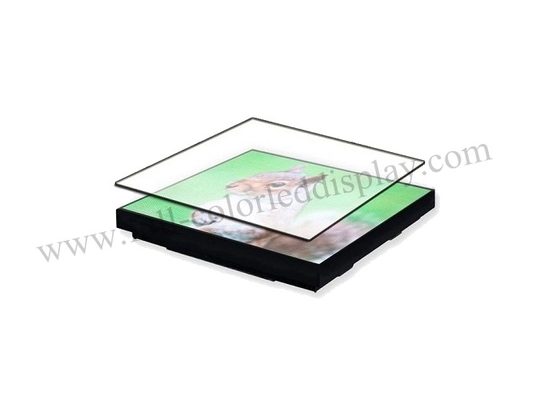

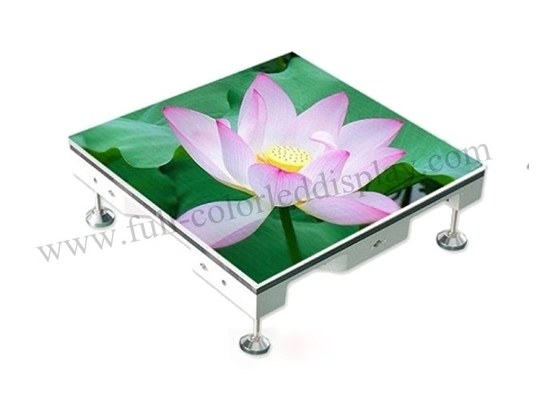

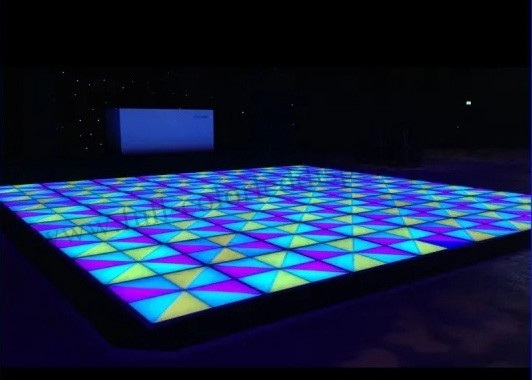

Floor led display details:
