| Pixel Pitch: | 3.91 Mm | Pixel Configuration: | SMD 1921 |
|---|---|---|---|
| Pixel Density: | 65,536 Pixels/m² | Module Dimensions (W × H) (mm): | 250 × 250 |
| Panel Dimensions (mm): | 500 × 1000 | NO.of Modules Per Panel (W × H): | 2 × 4 |
| Physical Resolution Of Module (W × H): | 64 X 64 | Panel Material: | Aluminum |
| Single Cabinet Weight: | 20 Kg/panel | ||
| High Light: | Stage Led Screen,Led Stage Backdrop Screen |
||
IP65 Waterproof Acrylic Led Screen floor Tile Backdrop , Led Curtain Display With Radar System
What is floor led display:
Like the floor can display video images and other information display screen
Generally used for stage, T, booth, bar, night show, broadcasting hall and other decoration.
P3.91 Indoor led video dance floor display feature:
P3.91 Indoor led video dance floor display parameter:
| LED Floor Display | ||||
| LW-3 | LW-5 | LW-6 | LW-8 | |
| Pixel Pitch | 3.91 mm | 5.2 mm | 6.25 mm | 8.928 mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3528 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) | 500 × 1000 | 500 × 1000 | 500 × 1000 | 500 × 1000 |
| NO.of Modules Per Panel (W × H) | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 |
| Physical Resolution of Module (W × H) | 64 x 64 | 48 x 48 | 40 x 40 | 28 x 28 |
| Physical Resolution of Panel (W × H) | 128 x 256 | 96 x 192 | 80 x 160 | 56 x 112 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 20 kg/panel | 25 kg/panel | 24 kg/panel | 25 kg/panel |
| ray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 300 W / m² | 300 W / m² | 300 W / m² | 300 W / m² |
| Max Power Consumption | 880 W / m² | 880 W / m² | 880 W / m² | 880 W / m² |
| Operating Temp/Humidity | -10ºC-60ºC / 10%-60% | -10ºC-60ºC / 10%-60% | -10ºC-60ºC / 10%-60% | -10ºC-60ºC / 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC / 10%-60% | -30ºC-60ºC / 10%-60% | -30ºC-60ºC / 10%-60% | -30ºC-60ºC / 10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | 2,500 nits | 2,000 nits | 4,500 nits | 4,500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Best Viewing Distance | 4m-60m | 6m-60m | 8m | 8m |
| Scan Method | 1 / 16 Scan | 1 / 6 Scan | 1 / 5 Scan | 1 / 3 Scan |
| Servicing | Front | Front | Front | Front |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||

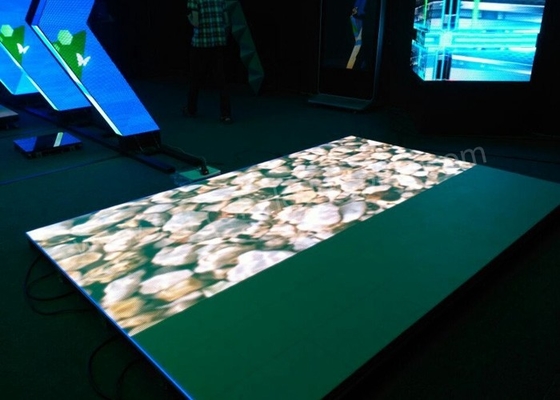

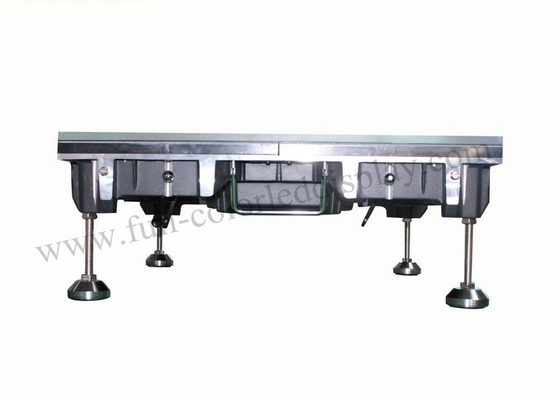

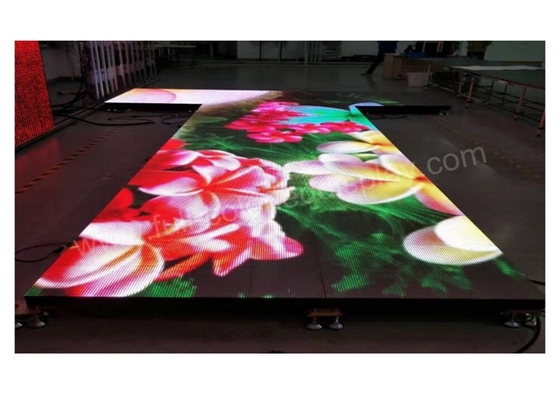

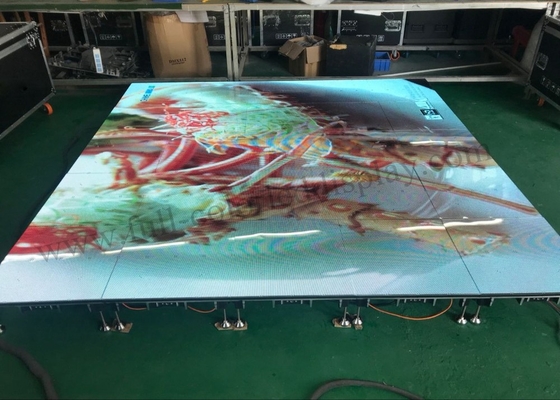

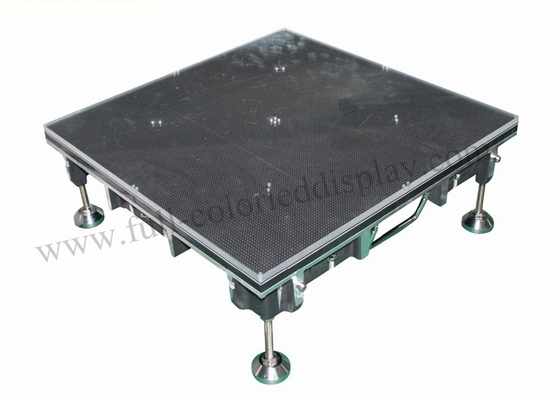

Floor led display details:
