| Pixel Pitch: | 4.81mm | Weight Of Cabinet: | 9.00KGS/pc |
|---|---|---|---|
| Brightness: | >4500 Cd/sq.m | Density: | 43264dots/sq.m |
| Viewing Angle: | 120 /120 | Pixel Configuration: | 1R1G1B |
| Best Viewing Distance: | 4-50M | Bear Capacity: | 1.5T/sq.m |
| High Light: | Stage Led Screen,Led Stage Backdrop Screen |
||
DJ Disco LED Stage Floor Display P4.81 1R1G1B Wide Viewing Angle With Sensing Chips
What is floor Dance display?

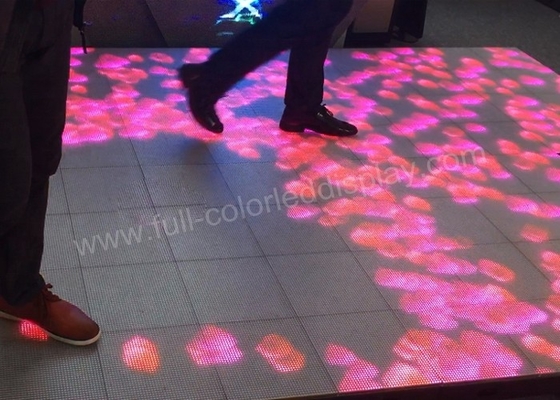

Infrared rays are used to sense human movements and capture the moving objects on the floor LED display screen accurately to change the stage effect, making you feel in immersive experience.
High sensitivity, strong reliability, intelligent energy saving in safety.
Floor Dance Display Feature:
About LED WORLD:
Established in 2009, LED WORLD is a professional and standardization LED Display Manufacturer. LED WORLD has build partner relationship with more than 50 countries and has made thousands of LED display projects around the world, such as World Cup, Olympic Games , Concert, Sports meeting and so on . LED WORLD has a professional R&D team and owns a industrial high class factory, we can independently make comprehensive detection analysis on our products to ensure its high quality and use-friendly for our customer.
Floor Dance Display Parameter:
| P4.81 full Color multifunction Floor LED Screen Specification | |
| Pixel pitch | 4.81mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD1921 |
| Size of module | 250mm x 250mm |
| Resolution of module | 52x52 dots |
| Size of cabinet | 500mm x 500mm x 75mm |
| Resolution of cabinet | 104x104 dots |
| Material of Cabinet | Die-casting aluminum |
| Weight of Cabinet | 9.00KGS/pc |
| Brightness | >4500 cd/sq.m |
| Density | 43264dots/sq.m |
| Best viewing angle | 120 /120 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 4-50M |
| Bear capacity | 1.5T/sq.m |
| Maximum power consumption | 800W/sq.m |
| Average power consumption | 400W/sq.m |
| Driving method | 1/13 scan |
| Control method | Synchronization / Asynchronization |
| Gray scale | 65536 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC110/220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequency | 50/60Hz |
| Refresh frequency | >1920Hz |
| IP grade | IP66 |
| Usage | Indoor/outdoor |
| Life Span | 100,000 hours |
| Data transfer method | RJ45 |
| Practical standard | CCC TUV-CE ETL etc. |
| Effective Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
