Product Details:
Payment & Shipping Terms:
|
| Product Item: | LW-F2.5 | Physical Pitch: | 2.5mm |
|---|---|---|---|
| Pixel Configuration: | SMD2121 | Pixel Density: | 160,000 Pixels/m² |
| Module Dimensions(W*H)(mm): | 240*120 | Panel Dimensions(mm): | Customized |
| Physical Resolution Of Module(W*H): | 96*48 | Weight: | 8.2kg/m² |
| Processing: | 14-16bit | Colour Number: | 281 Trillion |
| High Light: | Advertising Led Display,Indoor Led Display Screen |
||

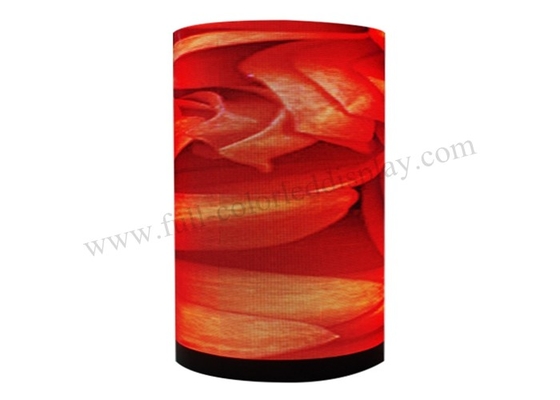

P2.5 flexible foldable led screen Cube Sphere Cylinder 1/24 scan
What is Flexible LED display?
With the application market of LED display becoming more and more mature, there are more and more subdivided products. LED flexible screen is one of them. Before we are familiar with LED display screen, all is hard. But the appearance of LED flexible screen, but broke such cognition
The flexible module is equipped with high-strength magnetic core connection device, flexible FPC circuit board made of flexible insulating substrate, and the mask and bottom shell are made of high-temperature and bending resistant silica gel material, with high strength of compression and distortion resistance
Flexible LED Display Feature:
Flexible LED Display Application :

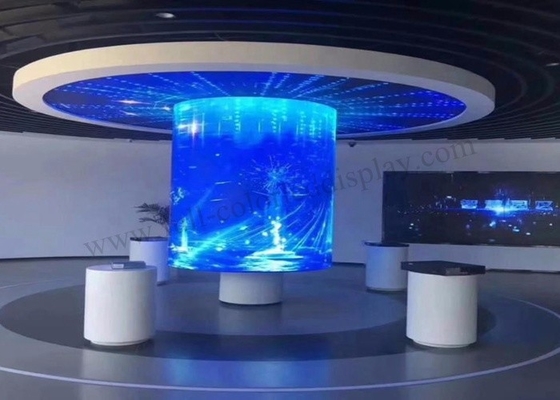

Now flexible led display has been widely used in indoor environment, due to the flexible led display unable to waterproof up to now, so it is unable to apply to outdoor . It can used in indoor cylinder, curved stage screen , creative led display etc.
Flexible LED Display Parameter:
| Product Item | LW-F2.5 | LW-F3 | LW-F4 | LW-F6.66 |
| Physical Pitch | 2.5mm | 3mm | 4mm | 6.66mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² | 22,545 pixels/m² |
| Module Dimensions(W*H)(mm) | 240*120 | 240*120 | 240*120 | 320*160 |
| Panel Dimensions(mm) | Customized | Customized | Customized | Customized |
| Physical Resolution of Module(W*H) | 96*48 | 80*40 | 60*30 | 48*24 |
| Weight | 8.2kg/m² | 8.2kg/m² | 8.2kg/m² | 8.2kg/m² |
| Processing | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 9W/m² | 10W/m² | 10W/m² | 10W/m² |
| Max. Power Consumption | 12W/m² | 13W/m² | 13W/m² | 13W/m² |
| Operating Temp/Humidity | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >1000 nits | >1000 nits | >1500 nits | >1500 nits |
| Driving Method | 1/40 | 1/40 | 1/40 | 1/40 |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Servicing | Front | Front | Front | Front |
| Certification | CCC,CE,ETL,FCC | CCC,CE,ETL,FCC | CCC,CE,ETL,FCC | CCC,CE,ETL,FCC |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||
