Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 4mm | Lamp: | SMD 2121 / SMD 2020 Black |
---|---|---|---|
Module Size: | 256mm X 128mm | Drive Model: | 1/16 Scan |
Pixel Configuration: | 1R1G1B | Module Resolution: | 64 Dots X 32 Dots |
Module Pixel: | 2,048 Pixel | Brightness: | 900 ~1200cd/M2 |
Power: | DC 5V | Number Of Colors: | 16 Bit |
High Light: | Advertising Led Display,Indoor Led Display Screen |

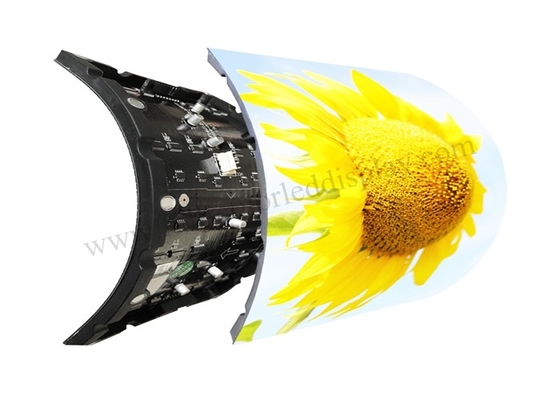

P4 1/16 scan flexible bendable led screen full color for indoor fixed installation
P4 1/15 scan flexible led display Feature :
P4 1/15 scan flexible led display Parameter:
Product Item | LW-F4 |
Physical Pitch | 4mm |
Pixel Configuration | SMD2020 black |
Pixel Density | 62,500 pixels/m² |
Module Dimensions(W*H)(mm) | 256 *128 |
Panel Dimensions(mm) | Customized |
Physical Resolution of Module(W*H) | 64*32 |
Processing | 14-16bit |
Colour Number | 281 trillion |
Contrast Ratio | 4000:1 |
Average Power Consumption | 10W/m² |
Max. Power Consumption | 13W/m² |
Operating Temp/Humidity | -20ºC-60ºC/10%-60% |
Storage Temp/Humidity | -40ºC-80ºC/10%-90% |
Refresh Rate | >1920Hz |
Brightness | 900 -1200 nits |
Driving Method | 1/16 scan |
Horizontal Viewing Angle | 160° |
Vertical Viewing Angle | 140° |
Expected Lifetime | 100,000Hrs |
IP Rating | IP40 |
Servicing | Front |
Certification | CCC,CE,ETL,FCC |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
