Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Pixel Density: | 40000 Dots/m2 |
|---|---|---|---|
| Pixels/module: | W:64 Dots X H:32 Dots | Module Size: | W:320mm X H: 160mm X T1.6mm (with Magnets 16m |
| Weight Of Module: | 0.12 Kg | Bending Radian: | ≤120° ( Advice 90°) |
| Bending Times: | <1000 Times | Drive Model: | 16 Constant Current Driving |
| Methods: | 1/16 S | Votage: | DC 5v ± 10% |
| High Light: | Advertising Led Display,Indoor Led Display Screen |
||

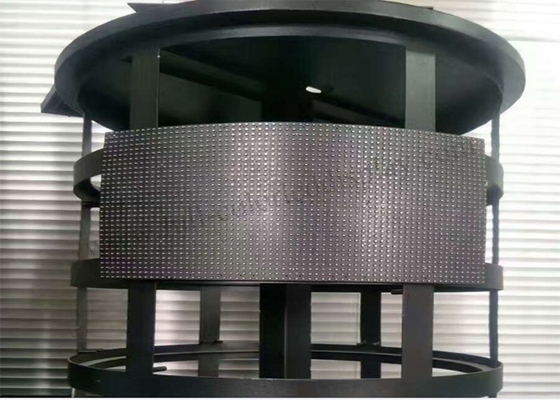

P5 1/16 scan flexible led display 320mm X 160mm hanging stallation
With the LED display application market more and more mature, it occured many kinds of LED displays. Such as stage rental led display, LED transparent display , led poster display, LED advertising player and so on . LED flexible display achieve the biggest breakthrough , However, it is not popular as those led display. This is why? Let LED WORLD tell you.
P5 1/16 scan flexible led display Feature:
P5 1/16 scan flexible led display Parameter:
| Pixel pitch | 5mm |
| Pixel density | 40,000 dots/m2 |
| Pixels/module | W:64 dots x H:32 dots |
| Module size | W:320mm x H: 160mm x T1.6mm (with magnets 16mm) |
| Weight of module | 0.12 kg |
| Bending radian | ≤120° ( advice 90°) |
| Bending times | <1000 times |
| Drive model | 16 Constant Current Driving |
| Sacn | 1/16 S |
| Votage | DC 5v ± 10% |
| Maximum current | 5A |
| Maximum power consumption | 25W |
| Port of power | VH4 |
| Port of signal | HUB75D |
| Brightness | ≥800 cd/m2 |
| Color temperature | 9000 ± 500K |
| Viewing angle | H/V 120° |
| Best viewing distance | ≥5m |
| Grey level | ≥14 Bit |
| Refresh rate | ≥1920 Hz |
| Lift time | 50,000 hours |
| Operating temperature | -20° C ~ +50° C |
| Operating humidity | -40°C ~ + 50°C |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
FQA:
1. Can we make any size of led display?
Nope, according the led module size and cabinet size, such as p4.81mm is 500x500mm for smallest unit
2. How to install led display?
We will offer drawing of steel structure or hanging truss,then you can install led display according the picture.
3. What s the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
Our average Production time is 16 days, after receiving the deposit.
4. What s your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shippingor sea shipping
