Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle

Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle
Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle

Large Image :  Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: RoHS,FCC,CCC,CE
Model Number: LW-FO10
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Plywood cartons or wooden case
Delivery Time: 15~18 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 square meter /Month
Detailed Product Description
Pixel Pitch(mm): 10mm LED Encapulation: SMD3535
Resolution Of Module(dots): 32(W)*16(H) Thickness Of Module (mm): 17.05(No Magnet)
Weight Of Module (Kg): 0.51 Driving Method: Constant Current Driving
Equilibrium Brightness(CD//m²): ≥5500 CD/m² Size(mm): 320*320 / 160*160
High Light:

led full color screen

,

large led display screen

10mm Front Service Full Color Led Display With 120° Viewing Angle​

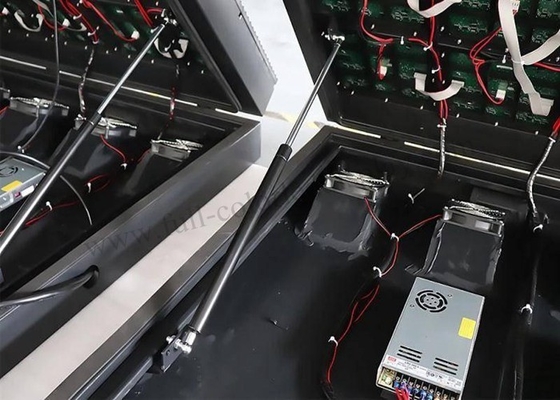

Front Service Advantage:

The difference between the front turning box led display and the ordinary box is that when any fault occurs in the display screen and the box needs to be opened for inspection, the internal structure of the display screen can be seen by gently pressing on the front side to open the hidden button in the box, so as to conduct inspection and maintenance.



10mm Front Service Full Color Led Display Features:

  • The screen is fixed to the body frame fixed firmware process is simple, easy to operate, completely within the industry complex and time-consuming step shortcomings.
  • Front and back serviceable,easy to maintain & install;
  • Color uniformity, high contrast, clear picture
  • High Stability: Use high-quality components and parts and sophisticated processing techniques. Products with stable quality, high reliability, and long life span.
  • With excellent windy, corrosion resistance function after surface treatment

10mm Front Service Full Color Led Display Parameter:



Module Parameter NO. P10
Size of Module(mm) 320*160
Pixel Density(dots/m²) 10000 dots/m²
Pixel Pitch(mm) 10mm
LED Encapulation SMD3535
Resolution of Module(dots) 32(W)*16(H)
Thickness of Module (mm) 17.05(No magnet)
Weight of Module (Kg) 0.51
Driving Method Constant Current Driving
Equilibrium Brightness(CD//m²) ≥5500 CD/m²
Bracket Size(mm) 320*320
160*160
Cabinet Size of Cabinet(mm) 640*640
Power Supply Mode 5V/40A*1PC
Best Viewing Distance(m) 10-100m
Best Viewing Angle 160(W) 120(H)
Storage Temperature(ºC) -35ºC ~ +85ºC
Working Temperature(ºC) -40ºC ~ +50ºC
Relative Humidity 10%-95%
Power Supply Working Voltage(V) AC220V±10%
Average Power Consumption(W/m²) ≤350 W/m²
Max Consumption(W/m²) ≤750 W/m²
Control System Scan and control Method 1/4 Synchronous Control
Driving Components Constant current Driving
Technical Parameters Refresh Frequency (HZ) ≥960 Hz/Sec
Frame Frequency (HZ) ≥60 HZ/Sec
Level of Brightness/Color RGB256
Level of Gray 65536
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





Our service:

  • CAD Drawing and Fixing ;
  • Your inquiry related to our products or price will be replied in 24hrs ;
  • Distributoership are offered for your unique design and some our current models ;
  • We also could solve problems for you until it recovers well by remote contro;
  • Weprovidefullmaintenanceforalifetimeandchargefortherawmaterialsonly;





FQA:

1. What is your company's service ?

Any inquires will be replied within 24 hours in working days and you ll get helpful suggestions from us.
2. What is your products packing?

We provide 3 kinds of packing case: carton paper case,wooden packing case and flight packing case.Carton paper case for led module,Wooden packing case for heavy iron cabinet,Flight packing case for rental aluminum die-casting cabinet
3. What s your delivery time?

Wthin 7-21 days after we receiving deposit
4. Does the blower have CE/ROHS certificate?

Yes, we offerCE/RoHS certificatedas to your requirements;
For asynchronous control: We use Onbon, or Xixun control system.

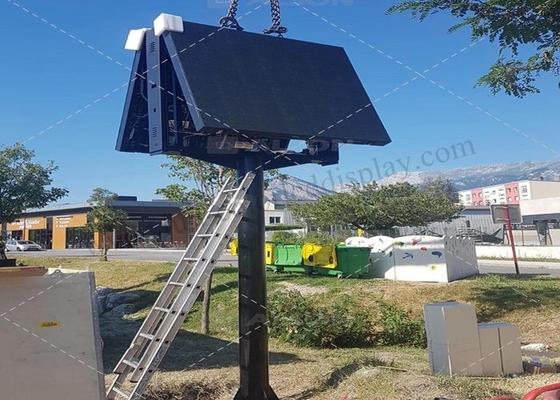

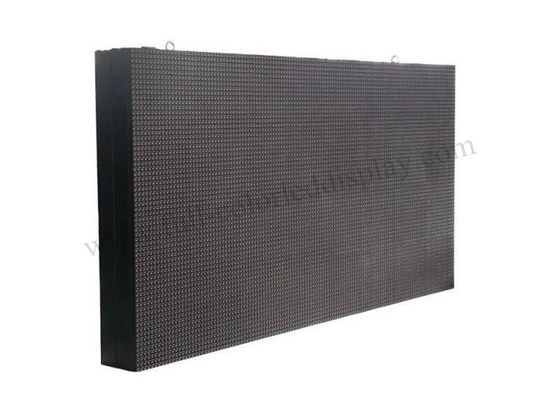

10mm Front Service Full Color Led Display Details :



Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle 0Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle 1

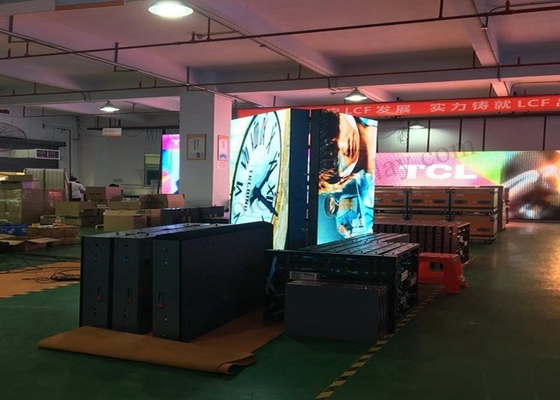

Package:



Front Service Double Sides Full Color LED Display 10mm Pixel Pitch With 120° Viewing Angle 2
