P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising

P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising
P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising

Large Image :  P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-FO5
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Life Span: 100000hours Led Chip: SMD1921 Black
Module Size: 320X160mm Application: Outdoor Advertising Led
Color: Full Color Refresh Rate: 1920Hz
Power Supply: MeanWell Lifespan: 10 0000 Hours
IP Rating: IP65 Working Temperature: -30ºC~50ºC
High Light:

led advertising board

,

high brightness led display

P5 Angle Outdoor LED Display High Resolution 1/16 Scan For Corner Advertising


P5 Angle LED Display Feature :

  • Display broadcasting full-motion picture;
  • High brightness, screen adjusts automatically;
  • Low Power Consumption, Energy Saving;
  • The brightness can be adjustable to meet the need of changing environment;
  • Kinglight LED lamp and Macroblock 5124 made;
  • That is to improve the aesthetic sense, but also make the screen view;



 P5 Angle LED Display Parameter :


P5 outdoor fixed led display
Module Parameter
Pixel pitch5mm
Pixel Density40000 pixels/sqm.
LED typeSMD2727
Pixel combination1R1G1B
Module size320x160mm
Module resolution64x32 pixels
Driving mode1/16 scan
Panel Parameter
Number of modules2W*4H
Panel size640x640mm
Panel resolution128x128
Maintain wayRear
IP RatingIP65
Flatness≤0.1mm
Cabinet materialDie-cast aluminium or Iron
General Parameter
Viewing distance≥6M
Brightness≥6500CD/sqm.
Viewing angle120°/120°
Weight40kg/sqm.
Max Power consumptionMax. 900W/sqm.
Aver Power consumptionAver. 360W/sqm.
Frame frequency≥60HZ
Refresh frequency≥1920HZ
Working Temperature -30ºC~50ºC
Working VoltageAC90~260V±20%,50-60HZ
Grey scale/color16384x16384x16384
Brightness adjustment0-255
MTBF5000 hours
Life100000 hours
Malfunction dot rate<0.0001
Control distanceEthernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control systemNovastar / Linsn / Colorlight ( Optional )
Input signalDVI / HDMI / SDI / VGA / S-video / Composite
Video processorVDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio systemBOSE / JBL / PAL / Customized ( Optional )
InstallationFixed installation / Rental installation ( Optional )
Hanging barOptional
CertificationCE / RoHS / ETL / CCC / FCC / BS476
Packing TypePlywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

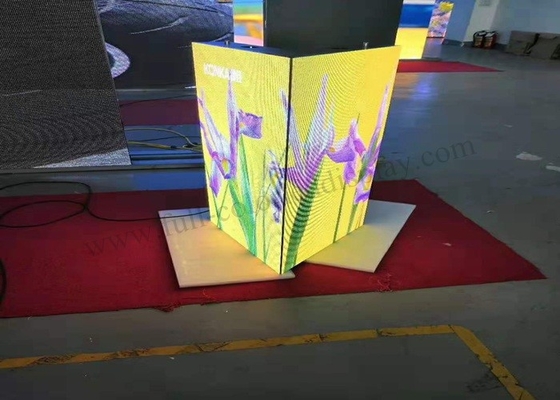

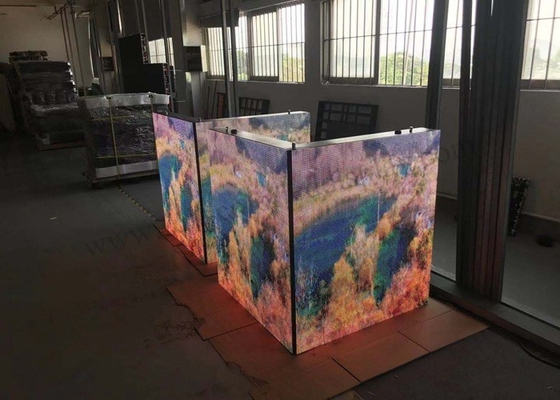

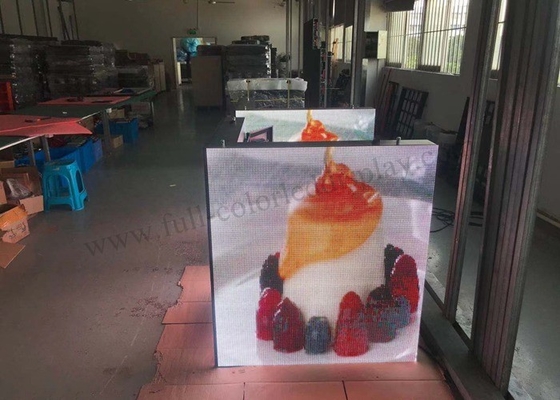

P4 Angle LED Display Details:

P5 Outdoor Fixed LED Display High Resolution 1/16 Scan For Corner Advertising 0

FQA:
1. What about the lead time?
Order less than 100 square meter led time take 15 working days
2. How can you ensure the led display product quality?
Quality is our core competence, for 9 years, what we rely on.We have each strict process to make quality products.If any quality failures within warranty time, we will sent the the replace parts to you and offer the technical support
3. Where is your factory located? How can I visit there?
Our factory is located inShenzhen City, Guangdong Province,China;
4. Whats your payment term? How long it takes to delivery?
We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
5. How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%;
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
