Product Details:
Payment & Shipping Terms:
|
Pixels: | 10mm | Usage: | Outdoor |
---|---|---|---|
Screen Dimension: | Customized Size | Tube Chip Color: | Full Color |
Display Function: | Video,Animation,Graphics | Brightness: | 6500cd/sqm |
Warranty: | 2 Years | Module Size: | 320mm X 160mm |
Refresh Rate: | ≥1920 Hz | Control System: | Novastar / Linsn / Colorlight ( Optional ) |
High Light: | led full color screen,large led display screen |
P10 Waterproof Angle Outdoor LED Display Full Color
P10 Angle LED Display Feature :
P10 Angle LED Display Parameter :
P10 outdoor fixed led display | |
Module Parameter | |
Pixel pitch | 10mm |
Pixel Density | 10000 pixels/sqm. |
LED type | SMD3535 |
Pixel combination | 1R1G1B |
Module size | 320x160mm |
Module resolution | 32x16 pixels |
Driving mode | 1/2 scan |
Panel Parameter | |
Number of modules | 4W*4H |
Panel size | 960x960mm |
Panel resolution | 96x96 |
Maintain way | Rear |
IP Rating | IP65 |
Flatness | ≤0.1mm |
Cabinet material | Die-cast aluminium or Iron |
General Parameter | |
Viewing distance | ≥11m |
Brightness | ≥6500CD/sqm. |
Viewing angle | 120°/120° |
Weight | 40kg/sqm. |
Max Power consumption | Max. 900W/sqm. |
Aver Power consumption | Aver. 360W/sqm. |
Frame frequency | ≥60HZ |
Refresh frequency | ≥1920HZ |
Working Temperature | -30ºC~50ºC |
Working Voltage | AC90~260V±20%,50-60HZ |
Grey scale/color | 16384x16384x16384 |
Brightness adjustment | 0-255 |
MTBF | 5000 hours |
Life | 100000 hours |
Malfunction dot rate | <0.0001 |
Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
Control system | |
Control system | Novastar / Linsn / Colorlight ( Optional ) |
Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
Audio system | |
Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
Installation | Fixed installation / Rental installation ( Optional ) |
Hanging bar | Optional |
Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
Packing Type | Plywood case / Flight case ( Optional ) |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |

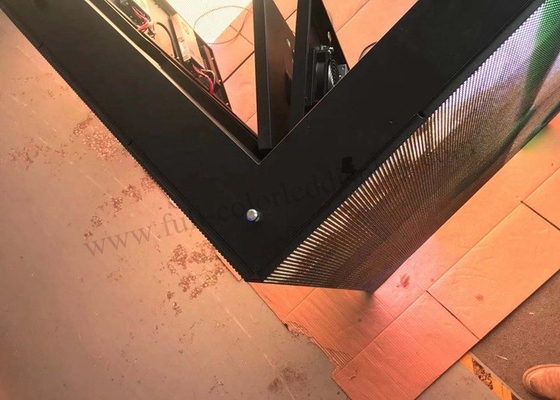

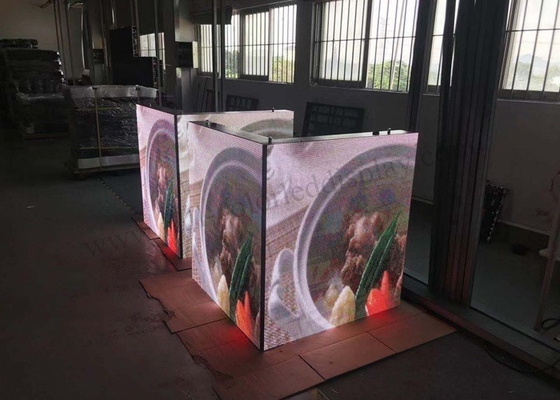

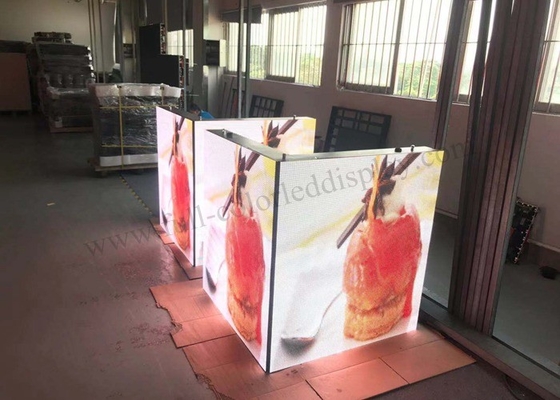

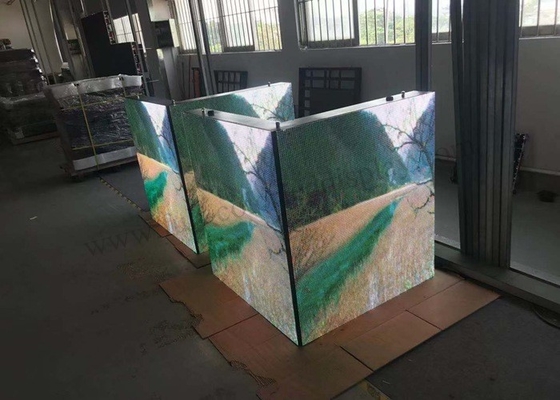

P10 Angle LED Display Details:
