High Brightness Outdoor Led Curtain Display , Led Matrix Display Easy Operation

High Brightness Outdoor Led Curtain Display , Led Matrix Display Easy Operation
High Brightness Outdoor Led Curtain Display , Led Matrix Display Easy Operation

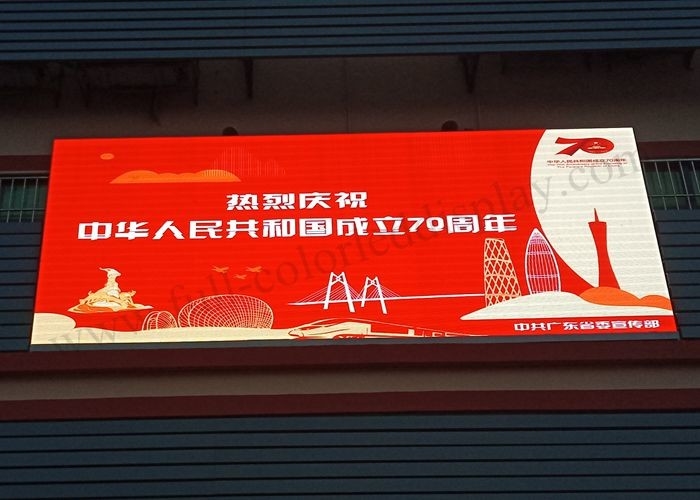

Large Image :  High Brightness Outdoor Led Curtain Display , Led Matrix Display Easy Operation

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO 10
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
Items: P10mm Pixel: 1R1G1B
Configuration: SMD3535 Pixel Pitch: 10mm
Pixel Density: 10,000 Dots/sqm Pixels/Module: 32x16
Cabinet Size(mm): 960 (mm)W*960 (mm)H ( Optional ) Pixels/Cabinet: 96x96
Viewing Distance: >10m Cabinet Material: Cold Rolled Steel
High Light:

led advertising board

,

high brightness led display

High Brightness Led Matrix Display Full Color Easy Operation

Features:

  • LED Chips: Opto, Epistar, Silan, Huacan, Sanan;
  • Low cost for maintenance by only replacing the malfunctioned piece;
  • Display 3D-Animation(accept all 3D-animation formats) smoothly;
  • Signal power aviation connectors are water dustproof, stable and reliable;
  • High contrast, high refresh rate make the image without any delay, trailing smear;
  • Anti-UV module mask, Anti-Oxidation module frame with protection from deformation;
  • Completely sealed module design, All-weather & UV-resistant Outdoor LED display, guaranteed reliability under the toughest operation conditions;
  • Model No.: P5, P6, P8, P10m (DIP LED)


Parameter:


P10 outdoor fixed led display
Module Parameter
Pixel pitch10mm
Pixel Density10000 pixels/sqm.
LED typeSMD3535
Pixel combination1R1G1B
Module size320x160mm
Module resolution32x16 pixels
Driving mode1/2 scan
Panel Parameter
Number of modules4W*4H
Panel size960x960mm
Panel resolution96x96
Maintain wayRear
IP RatingIP65
Flatness≤0.1mm
Cabinet materialDie-cast aluminium or Iron
General Parameter
Viewing distance≥11m
Brightness≥6500CD/sqm.
Viewing angle120°/120°
Weight40kg/sqm.
Max Power consumptionMax. 900W/sqm.
Aver Power consumptionAver. 360W/sqm.
Frame frequency≥60HZ
Refresh frequency≥1920HZ
Working Temperature-30ºC~50ºC
Working VoltageAC90~260V±20%,50-60HZ
Grey scale/color16384x16384x16384
Brightness adjustment0-255
MTBF5000 hours
Life100000 hours
Malfunction dot rate<0.0001
Control distanceEthernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control systemNovastar / Linsn / Colorlight ( Optional )
Input signalDVI / HDMI / SDI / VGA / S-video / Composite
Video processorVDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio systemBOSE / JBL / PAL / Customized ( Optional )
InstallationFixed installation / Rental installation ( Optional )
Hanging barOptional
CertificationCE / RoHS / ETL / CCC / FCC / BS476
Packing TypePlywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Our company:
Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation from our customer.
OEM, ODM, Own Brand(LED WORLD).
Main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas.
Shenzhen is a center of globle source, we can get more superior price raw material and advanced information and technology, alll of these give our company a best environment in promoting its high-class products.

Why choose us:

  • all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
  • Professional sales and technical team of 21 people to ensure perfect results;
  • Stable Good quality:we are led display manufacturer for 7 years and we have rich experience for outdoor and indoor led screen;
  • Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade, exhibitions, celebrations, etc;
  • We have fully automatic production lines and have more than 120 employees;
