P10 Outdoor Full Color LED Screen Specification Pixel Pitch 10mm Pixel Configuration 1R1G1B LED Com: | 5mm | LED Component: | SMD3535 Black |
---|---|---|---|
Size Of Module: | 320mm X 160mm | Size Of Cabinet: | 960mmx 960mm /1280mm X 960mm |
Material Of Cabinet: | Cold Rolled Steel | Brightness: | 6500cd/m2 |
Best Viewing Distance: | 5-100M | Driving Method: | 1/16 Scan |
Colors: | 256 X 256 X 256 | Life: | 100000 Hours |
High Light: | led advertising board,high brightness led display |

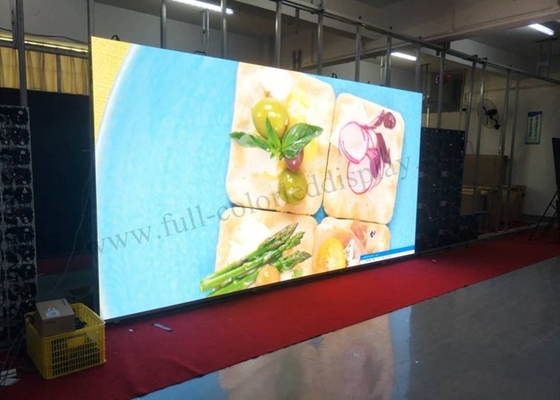

50/60Hz P5 Outdoor High Brightness Led Display 960*960mm Nation Star
P5 Outdoor LED Display features:
Excellent quality with low power consumption, High brightness, Long Lifespan and easy to installation.
P5 Outdoor LED Display parameter:
P5 outdoor fixed led display | |
Module Parameter | |
Pixel pitch | 5mm |
Pixel Density | 40000 pixels/sqm. |
LED type | SMD2727 |
Pixel combination | 1R1G1B |
Module size | 320x160mm |
Module resolution | 64x32 pixels |
Driving mode | 1/16 scan |
Panel Parameter | |
Number of modules | 2W*4H |
Panel size | 640x640mm |
Panel resolution | 128x128 |
Maintain way | Rear |
IP Rating | IP65 |
Flatness | ≤0.1mm |
Cabinet material | Die-cast aluminium or Iron |
General Parameter | |
Viewing distance | ≥6M |
Brightness | ≥6500CD/sqm. |
Viewing angle | 120°/120° |
Weight | 40kg/sqm. |
Max Power consumption | Max. 900W/sqm. |
Aver Power consumption | Aver. 360W/sqm. |
Frame frequency | ≥60HZ |
Refresh frequency | ≥1920HZ |
Working Temperature | -30ºC~50ºC |
Working Voltage | AC90~260V±20%,50-60HZ |
Greyscale/color | 16384x16384x16384 |
Brightness adjustment | 0-255 |
MTBF | 5000 hours |
Life | 100000 hours |
Malfunction dot rate | <0.0001 |
Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
Control system | |
Control system | Novastar / Linsn / Colorlight ( Optional ) |
Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
Audio system | |
Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
Installation | Fixed installation / Rental installation ( Optional ) |
Hanging bar | Optional |
Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
Packing Type | Plywood case / Flight case ( Optional ) |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
