Product Details:
Payment & Shipping Terms:
|
| Screen Dimension: | Customized | Tube Chip Color: | Full Color |
|---|---|---|---|
| Usage: | Indoor | Pixels: | 3mm |
| Display Function: | Video,text,picture | Warranty: | 2 Years |
| Refresh Rate: | 3840Hz | Maintainance: | Front Service |
| Control System: | Linsn/Novastar | Power Supply: | G-energy(CE/UL) |
| High Light: | Advertising Led Display,Indoor Led Display Screen |
||
Indoor fixed led display_201905211023311.pdf
P3 Indoor Fixed LED Display Show Digital HD Video Easy Installation
P3 Indoor Fixed LED Display Feature:
P3 Indoor Fixed LED Display Parameter:
| Module | Pixel Pitch | P3mm |
| Encapsulation | SMD2121 black | |
| Pixel Configuration | 1R1G1B | |
| Driver Method | Scan1/16 | |
| Color Match | R:G:B=3:6:1 | |
| Module Size(H*W) | 96*192mm | |
| Module Resolution(H*W) | 32*64dots | |
| Cabinet | Cabinets Size(H*W) | 576*768mm |
| Pixel Density | 111111dots/M2 | |
| Cabinet Weight | 15kg | |
| Cabinet Material | Iron | |
| Maintenance | Front service | |
| Electricity parameter | Average Power Consumption | 540W/M2 |
| Max. Consumption | 1200W/M2 | |
| Brightness | ≥1300CD/M2 | |
| View Angle | H 120° /V 120° | |
| Refresh Rate | ≥1920Hz | |
| Frame Frequency | ≥60Hz | |
| Color Depth | 14bit | |
| Voltage Input | AC110V/220V±15% 40~65HZ | |
| IP Rating | IP31(front/back) | |
| Operating Temperature | -20ºC~60ºC , storage for :-30ºC~+90ºC | |
| System Working Environment Humidity | 10%-90%RH | |
| Life Span(Hours) | ≥55,000Hours | |
| Best View Distance | 3-105meter | |
| Color Temperature | 5600K±500 | |
| Power Supply | G-energy(CE/UL) | |
| Control Distance | <100meter by Internet Cable(without Relay); Fiber Cable > 500 meters | |
| No-malfunction time(Avg.) | >5000hours | |
| Control system | Linsn/Novastar | |
| Compliant standard | CE, ROHS.ETL,UL.TUV.CCC,EMC | |
| Information Sources | Many kinds of signal access: can input TV signals, DVD signals, DVI, S-VIDEO, RGB, VGA, and so on. | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
FQA:
1. How to shipment?
Normally, our outdoor led display will be shipped by air and express (DHL, FedEx, UPS) and in a container by sea for the mass order.
2. What's the controlling system used on your LED screen?
Ourstandardcontrollingsystems are Linsn and Novastar which are the most popular in the market Alsosupportothercontrollingsystem such as Xixun Colorlight etc.
3. What's the controlling system?
Our standard controlling system for this model is Linsn, Novastar. Also support other controlling systems, like Xixun, TF, Colorlight, etc.
4. Where is your factory located? How can I visit there?
Our factory is located in Shenzhen City, Guangdong Province, China;
5. How long is the production lead time?
Normally it is 20 working days after receipt of 30 deposit For some urgent project please talk to us then we will try our best to meet your requirements.

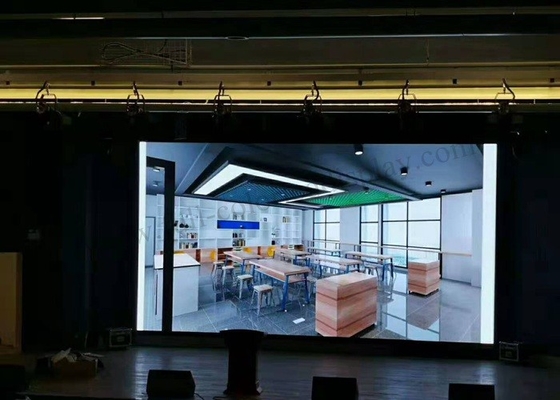

P3 Indoor Fixed LED Display Details:
