Product Details:
Payment & Shipping Terms:
|
Input Power (V): | 110~240 | Control: | Caste ≤100M, Fiber Optical≤10000M |
---|---|---|---|
View Angle(H/V): | 160°/140° | Refresh Rate(Hz): | ≥2000 |
Grey Scale: | 16Bits | Usage: | Outdoor,Indoor |
Pixels: | 4.81 | Screen Dimension: | 500*500 / 500*1000mm |
Tube Chip Color: | Full Color | Warranty: | 2 Years |
Life Span: | 100000hours | Refresh Rate: | 1920/3840 |
High Light: | led panel rental,led screen hire |
Neat P4.81 outdoor rental led display screen Circuit with S-VIDEO HDMI DVI
P4.81 outdoor rental led display screen quick detail:
P4.81 outdoor rental led display screen application:
Advertising LED displays, stage led screens, mobile led display for mobile media, promotion event, church installations, trade show,store window advertising, TV station,etc.
P4.81 outdoor rental led display screen parameter:
Lamps:
No. | Parameter | Value | |||
led type | brightness | Wave Length | H/V Visual angle | ||
1 | Red LED | SMD2727 | 600-800 MCD | 620-625nm | 140°/120° |
2 | Green LED | SMD2727 | 1800-2000 MCD | 520-525nm | 140°/120° |
3 | Blue LED | SMD2727 | 400- 600 MCD | 470-475nm | 140°/120° |
Model No. | P4.81 |
Pixel pitch | 4.81mm |
Led type(Black) | SMD2727 |
Resolution(dots/) | 43264 |
Brightness(Nits) | ≥5500 |
Drive mode | 1/13 |
Module size(mm) | 250×250 |
Panel size (mm) | 500×500 |
Panel resolution | 104×104 |
Cabinet weight | 10kgs |
Powerconsumption | 600/300 |
Max./Avg. (W/) | |
View angle(H/V) | 160°/140° |
Refresh rate(Hz) | ≥2000 |
Grey scale | 16Bits |
Best view distance | 2-40M |
Protection level | IP65 |
Input Power (V) | 110~240 |
WorkingTemperature | -20ºC~+50ºC |
Working humidity | 10% ~90% |
Control | Caste ≤100M, Fiber optical≤10000M |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
1. Can we make any size of outdoor rental led display?
No, according the led module size and cabient size, such as p6 outdoor led display, the smallest unit size is: 576*576mm.
2. What is your quality guarantee ?
Life span of LED display screens is more than 100,000 hours,All our LED displays have CE,FCC,RoHS certificates.
3. How to install outdoor rental led display?
We will provide drawing of steel structure or hanging truss,then you can install outdoor led display very easy.
4. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with ,Skype / email / phone, in case of any delays.
Our service:

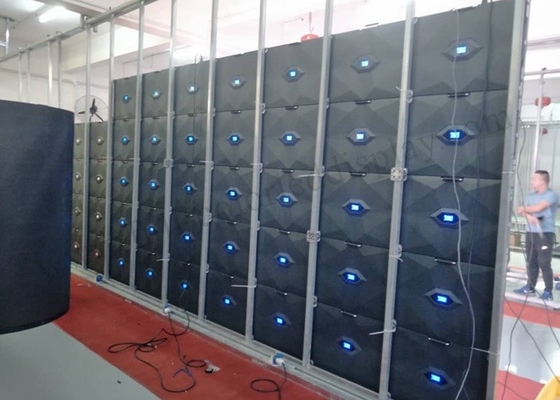

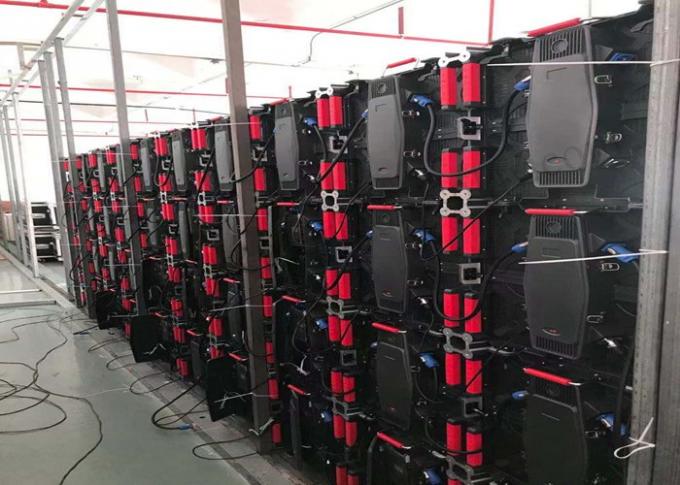

P4.81 outdoor rental led display screen Aging:

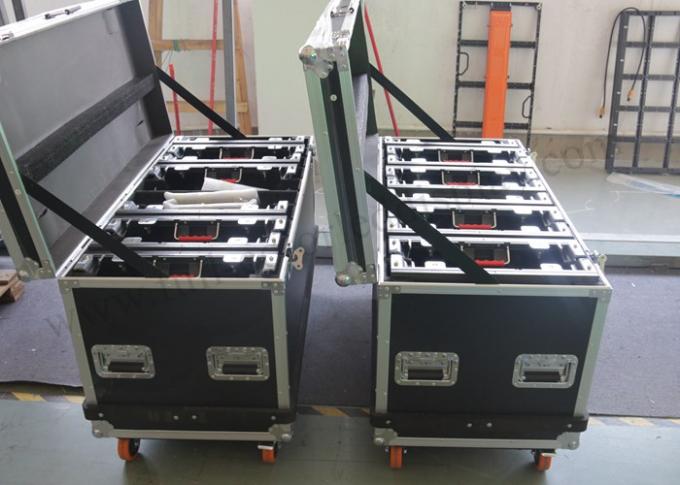

Package:
