IP Rating: | IP20 | Operating Temperature: | -20℃ ~ +40℃ |
---|---|---|---|
Cabinet Material: | Cold Rolled Steel | Brightness: | 1300cd/㎡ |
Usage: | Indoor | Display Function: | Video,text,message |
Application: | Indoor Advertising | Color: | RGB |
Refresh Rate: | 3840Hz | Power Supply: | Meanwell |
High Light: | Advertising Led Display,Indoor Led Display Screen |
Indoor fixed led display_201905211023311.pdf

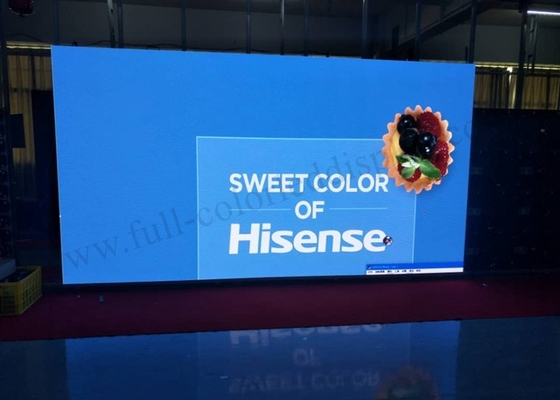

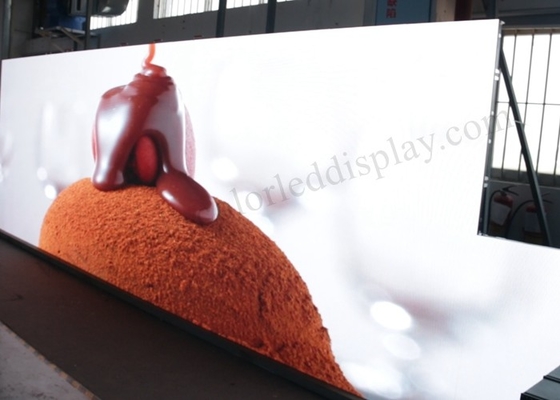

High Definition P2.5 Digital Indoor Fixed LED Display Sign Video
Features:
Parameter:
Items | P2.5mm |
Pixel | 1R1G1B |
Configuration | SMD 3-in-1 |
Pixel Pitch | 2.5mm |
Pixel Density | 160,000 |
Module Size(mm) | 160x160 |
Pixels/Module | 64x64 |
Cabinet Size(mm) | 960x960 |
Pixels/Cabinet | 384x384 |
Cabinet Weight | 37KG |
Brightness | 1300cd/㎡ |
Viewing Distance | >2.5m |
Power Consumption | Max: 800 |
(W/㎡) | Ave: 240 |
Driver Mode | 1/32 scan |
Cabinet Material | Cold Rolled Steel |
Refresh Rate | 300-3000HZ adjustable |
LED Life | 100,000 hours |
Supply Voltage | AC220V/50HZ; AC110V/60HZ |
Operating Temperature | -20℃ ~ +40℃ |
Operating Humidity | 10% - 90% |
Viewing Angle | H: 120°; V: 120° |
Gray Scale | Red, Green and Blue each 16K |
Display Color | 4096 Billion |
IP Rating | IP20 |
Display Capability | Text, Graph and Video |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
