| IP Grade: | IP65 | Cabinet Weight(: | 20 Kg |
|---|---|---|---|
| Cabinet Material: | Iron/Aluminum | Pixel Pitch: | 10mm |
| Function: | Stadium Events | Cabinet Size: | 960x960mm |
| Configuration: | SMD1921 | Viewing Distance: | >5m |
| High Light: | Synchronous Control Stadium LED Display,10mm Pitch Stadium LED Display,SMD1921 Outdoor Led Display Board |
||

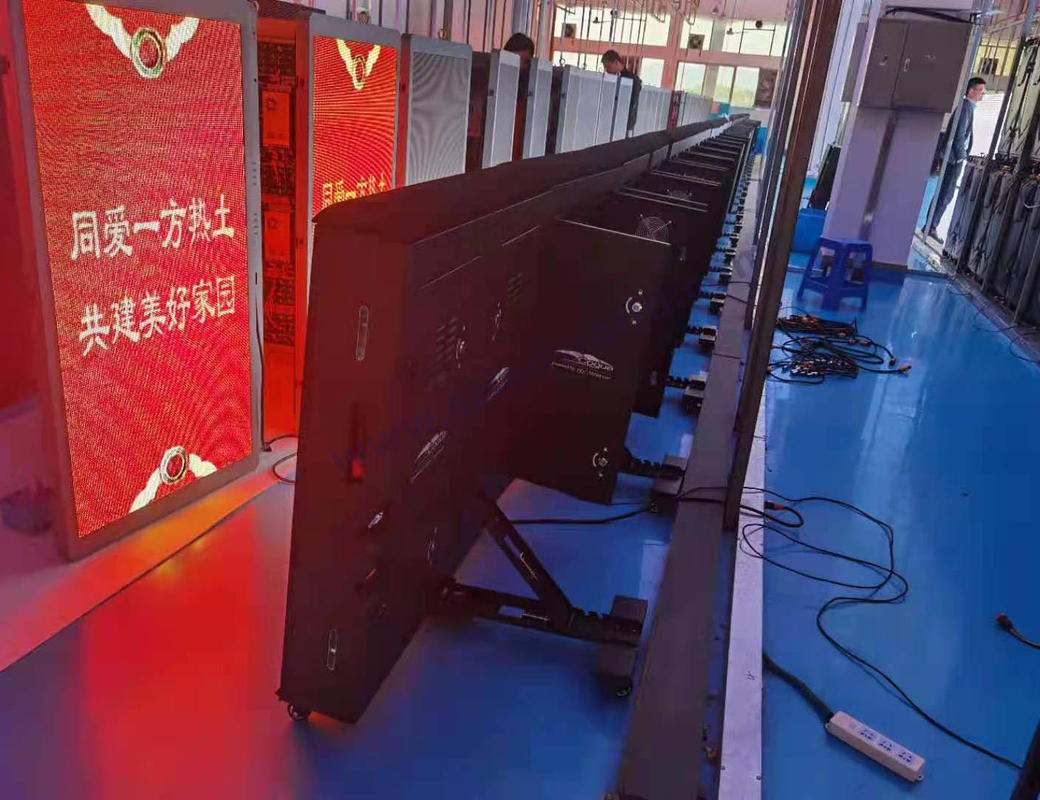

Large Stadium Smd Full Color Outdoor Led Display Boards And Sign
Features:
1. Steel and Aluminum cabinets are optional . Accept size customize, can do concave, convex shapes.
2. Light sensor is added to the led display to adjust the brightness according to the environment. Extremely guaranteed a longer lifespan and better visual effectiveness for display.
3. Power cable and signal cable can just insert from the hole of beside, saved cost for clients.
4. The best competitive price in the market with the same even better quality.
5. If you require projects installation, our engineer can go to instruct you how to install the led display.
6. About the control system, we classified synchronous control and asynchronous control. The asynchronous control can make use of USB, RJ45, WIFI, and 4G to transmit.
Specification:
| Pixel Pitch | P2.5 | P3 | P4 | P5 | P6 | P8 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2525 | SMD3535 | SMD3535 |
| Pixel Density(dots/sqm) | 160000 | 111111 | 62500 | 40000 | 27777 | 15625 |
| Module Dimension (W*H)(mm) | 160x160 | 192x192 | 256x128 | 160x160 | 192x192 | 256x128 |
| Standard Panel Dimension(mm) | 960x960 | 960x960 | 1024x768 | 960x960 | 960x960 | 1024x768 |
| Physical Resolution of Panel(W*H) | 384x384 | 320x320 | 256x192 | 192x192 | 160x160 | 128x96 |
| Panel Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Horizontal Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Vertical Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Servicing | Rear | Rear | Rear | Rear | Rear | Rear |
Warranty service:
1. Free warranty for two years, providing lifetime maintenance service. A certain cost will be charged within a reasonable range after the warranty period. During the warranty period, we are responsible for the maintenance and maintenance of all equipment specified in the contract, and any replacement or repair of any equipment or components caused by product design, installation process, materials, product quality, and components. Ensure that the system reaches the design life.
2. Responsible for technical support and version upgrade of related software.
3. During the maintenance period, if the customer has other transformation needs, our company will use its own technical advantages to help customers complete the transformation work in a timely, fast and safe manner.
4. For the original similar items of the customer, if the original manufacturer can not undertake the maintenance work, our company can assist in the maintenance and negotiate the cost.
5. If the system fails, our company guarantees to respond within half an hour after receiving the notice.
6. During the maintenance period, when there is no fault, our company also regularly dispatches technicians to overhaul the system without prejudice to the normal use of the customer, and eliminate hidden dangers.
Details:
