Product Details:
Payment & Shipping Terms:
|
Best Viewing Distance: | 10-150M | Color Temperature: | 6500k |
---|---|---|---|
Frame Frequence: | ≥60Hz | Data Transafer Method: | RJ45 |
Density: | 3906dots/sq.m | Pixel Pitch: | 16mm |
Brightness: | >7000cd/sq.m | Size Of Module: | 256mm X256mm |
High Light: | Sports Led Display Screen,Sport Led Screen |
Stadium outdoor LED display.pdf

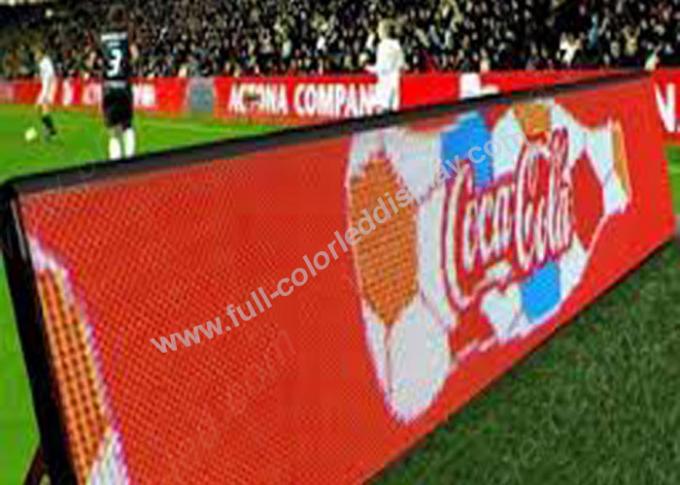

P16 outside Stadium LED Display screen video board for football Perimeter advertising.
Features:
Parameter:
P16 DIP Outdoor full Color LED Screen Specification | |
Pixel pitch | 16mm |
Screen area | 163840x1024mm |
Resolution of one screen | 10240 x 64dots |
Size of module | 256mm x256mm |
Resolution of module | 16 x 16 |
Size of cabinet | 1024mm x 1024mm x 150mm |
Resolution of cabinet | 64 x 64 |
Number of Cabinets | 160 pcs |
Weight of Cabinet | <65KGS |
Brightness | >7000cd/sq.m |
Density | 3906dots/sq.m |
Best viewing angle | 110 /60 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 10-150M |
Maximum power consumption | <600W/sq.m |
Driving method | Static constant |
Control method | Synchronization |
Gray scale | 16 bits |
Colors | 16777216 |
Color temperature | 6500k |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
MTBF | >10,000 hours |
Frame frequence | ≥60Hz |
Refresh frequence | >1800Hz |
IP grade | IP65 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Distance(without relay) | Single-mode optic fiber: 10KM |
Systems operating platform | WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our company:
Our company technology strength is among the front row in this area, with a vigorous team.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Shenzhen LED World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
