Product Details:
Payment & Shipping Terms:
|
| Average.power(W / M2): | 170w | Lifetime(h): | ≥50000 |
|---|---|---|---|
| Refresh Rate(Hz): | 600HZ | LED Type: | SMD3528 |
| Cabinet Size(mm): | 576×576 | Pixel Density(pix/m2): | 43402 |
| Pixel Pitch (mm): | 4mm | Cabinet Material: | Die-cast Aluminum |
| High Light: | Stage Led Screen,Led Stage Backdrop Screen |
||
indoor rental 512mmx512mm-P4.pdf
256 x128 4Mm LED Stage Display , full color led module H 140 ° , V 140 ° angle
Features:
Application:
It can be widely used in chain shop,communications, star hotel, indoor LED video wall,Convenience Stores,Building facilities,night club,municipal public buildings,club,museum,Entertainment complexes,banquet,cinema, Offices and so on .
FQA:
Parameter:
| Parameters | Indoor Die-casting LED display classical series(576*576) |
| Pixel Pitch (mm) | 4 mm |
| Pixel density(pix/m2) | 43402 |
| LED Type | SMD3528 |
| Viewing Angle | H:140°,V:140° |
| Brightness(nits) | 2500 |
| Drive Method | 1/15 |
| Color Depth | 16bit |
| Refresh Rate(Hz) | 600HZ |
| Module Size (mm) | 288×288 |
| Cabinet Size(mm) | 576×576 |
| Cabinet Material | Die-cast aluminum |
| Cabinet weight(kg) | 10.5 |
| Voltage | 110/250V |
| Average.power(W / m2) | 170 |
| Max.power (W / m2) | 500 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

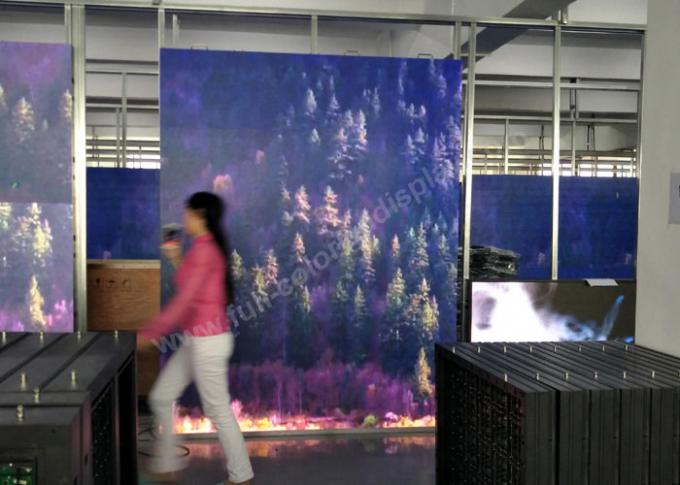

Product aging:
