P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576

P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576
P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576 P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576 P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576

Large Image :  P3 1R1G1B Indoor Rental LED Video Wall Screen Display With 576x576

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-RI 3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Carton/Plywood case/Flight case etc.
Delivery Time: 15~18 days after receiving the deposit
Payment Terms: T/T, Western Union
Supply Ability: 2000 Sqm/Month
Detailed Product Description
LED Life: 100,000Hours Protection Grade: IP 30
Drive Mode: 1/16 Scan Drive IC: MBI5024(Or Other Similar IC)
Module Resolution: 32Pixel * 64Pixel Pixel/SQM: 111111Pixel/m²
Pixel Configure: 1R1G1B Aviation Plug: Wp20
High Light:

led full color screen

,

commercial led display

P3 indoor rental LED video wall screen display with 576x576 die-casting cabinet



P3 indoor rental LED video wall screen display  features:

  • 576x576 mm die-caste cabinet can suitable for lots of pixel dots:P3,P4,P6 mm indoor and outdoor ;
  • Fanless design;
  • High resolution high precision;
  • Strong and durable cabinet design of high precision die-cast aluminum;
  • It can be largely applied for outdoor led wall advertising and huge building decoration;
  • Compact, Reliable and Easy to Service;
  • Rental design, easy to install and dismantle without any tools;
  • High contrast, wide viewing angle & low energy consumption;
  • Best quality LED chip tube
  • the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
  • Long Life Span;



P3 indoor rental LED video wall screen display  Parameter:

Configure Specification Parameter
Pixel Dot Pitch 3mm
Pixel Configure 1R1G1B
Pixel/SQM 111111Pixel/m²
LED Lamp LED TYPE SMD 2020
Chip Brand EPISTAR
Wavelength & Brightness Red:620-622.5nm;>220mcdGreen:520-522.5nm;>480mcd
Blue:465-467.5nm;>70mcd
Module Module Resolution 32Pixel * 64Pixel
Drive Mode Constant Current Drive
Scanning Method 1/16Scanning
Module Dimension 96mm(Width)x192mm(Height)
Drive IC MBI5024(Or other Similar IC)
LED & Drive Composition Light-Drive Separation
Refresh Rate >1000HZ
Cabinet Cabinet Thickness 100mm
Cabinet Construction Simple Cabinet
Cabinet Assembly Connecting Sheet
Cabinet Color(Front/Back) Black
Aviation Plug wp20
Maintenance Mode Back Maintenance
Cabinet Material Spcc1.5
Cabinet Dimension 576X576X100mm
Power Supply China Power Supply
LED Screen Viewing Angle Horizontal : 120 ° Vertical: 120 °
Brightness >4500cd/m²
Best Viewing Distance 3~15m
LED Life 100,000Hours
Maximum Power 2000w/m²
Average Power 700w/m²
Input Voltage 220V±10% Or 110V±10%
Operation Environment Temperature: —20°C~60°C; Humidity: 10%~95%
Protection Grade IP 30
LED Screen Weight 35kg/m2
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

P3 indoor rental LED video wall screen display application:

Wide applied in bookstore,bank,commercial advertising,fitness hall,club,massage room,theme parks,cinema, traffic Control,4S shop,cinemas,star hotel, train/bus station,stage background, live broadcast and so on .



Our service:

  • Well-trained and experienced staffs to answer all your enquires in fluent English;
  • Training in our factory offered FOC;
  • We offered software customization for our your specific usage;
  • Service time: 24 hours*7 days;

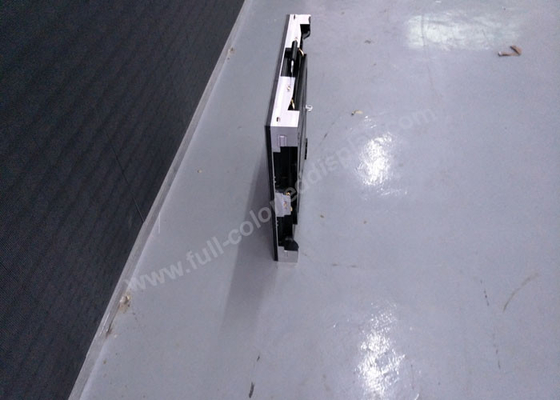

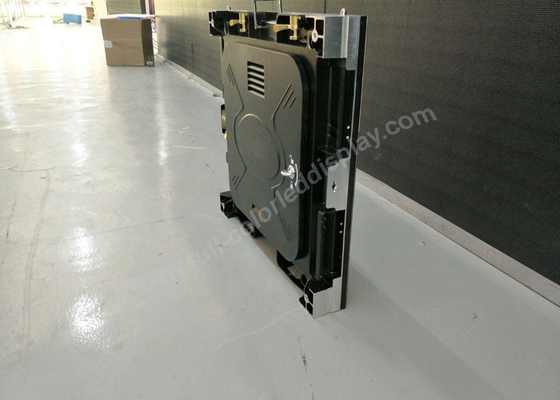

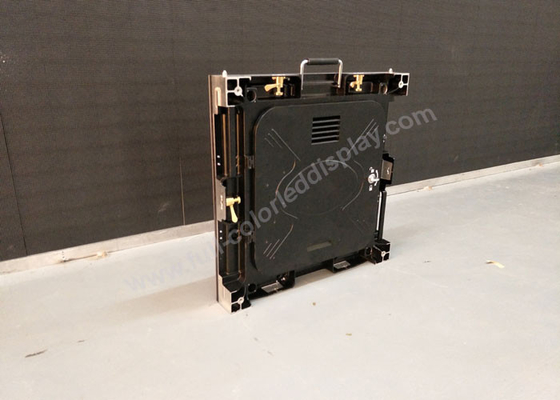

P3 indoor rental LED video wall screen display  product detail:
