Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input

China Shenzhen LED World Co.,Ltd certification
China Shenzhen LED World Co.,Ltd certification
Good quality and competitive price,excellent costumer service from LED World peoples, any problem is timely solved.

—— Sjoerd van Herpen

I just started LED display business this year,thanks for LED World's support.They are very professional and patient !

—— Mr Mahmoud Salamzadeh

I am satisfied with this company,LED World's LED displays and service perfect !

—— Mr Francisco de Miguel

Thank you very much for your help with my case. Your firm did a great job!

—— Mrs Serena Crispino

Everyone was friendly and kept me well informed. I was very satisfied with the outcome. It all worked out better than I expected.

—— Mr Chinnasami Ramasamy

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Gina

I'm Online Chat Now

Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input

Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input
Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input

Large Image :  Professional IP65 Outdoor Fixed LED Display P20 With S-Video VGA DVI Input

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
LED Chip: Taiwan/Silan/Cree/Cree Cotco Pixel Composition: 2Red, 1Green, 1Blue
Moduel Size: 320*160mm Control Method: Controlled By PC, Synchronous Display
Weight: 70Kg /sqm Peak Power Consumption: 800W/sqm
Video Frame Rate: ≥ 150 Fps Soft Rubber Mask: To Protect Player And LED Display Itself
Viewing Angle: Horizontal ≥ 120° , Vertical : ≥ 45° Bracket Of Cabinet: Easy To Install Onto The LED Cabinet And Unistall
High Light:

led advertising board


high brightness led display

Outdoor series fixed led display_201905211506521.p...P25 dip IP65 Outdoor Fixed LED Display / electronic signs with S-video VGA DVI input


Quick detail:

  1. Pixel composition:2Red, 1Green, 1Blue ;
  2. LED chip:Taiwan/Silan/Cree/Cree Cotco ;
  3. Physical Pixel Pitch:20mm ;
  4. Physical Pixel Density:2500dots/m 2;
  5. cabinet resolution:48x48 dots or customized;
  6. Viewing angle:Horizontal ≥ 120° , Vertical : ≥ 45°;
  7. Type of video signal:S-video, composite video, RGB, VGA, DVI .


Product features:

  1. Pixel pitch is larger, suitable for long-distance viewing and large screen ;
  2. Using DIP lamps, lifetime is longer than SMD lamps ;
  3. You can use software to adjust the bright and dark lines ;
  4. Waterproof level is very good, you can do double door, in front of the back can IP65 .


Product parameters:

No. Item Specifications Value
1.   Part No. P20 full color outdoor led sign board
2. LED chip Taiwan/Silan/Cree/Cree Cotco
3. Physical Pixel Pitch 20mm
4. Physical Pixel Density 2500dots/m 2
5. Pixel composition 2Red, 1Green, 1Blue
6. Moduel Size 320*160mm
7. Moduel resolution 16*8dots
  Cabinet cabinet size  960x960 mm or customized
  cabinet resolution  48x48 dots or customized
8. Cabinet thickness < 170 mm
9. Bracket of cabinet Easy to install onto the LED cabinet and unistall.
10. Electricity parameter Brightness ≥ 6500 nits
11. Colors 16.7million
12. Viewing angle Horizontal ≥ 120° , Vertical : ≥ 45°
13. Viewing distance 15m -300m
14. Soft Rubber Mask To protect player and LED display itself.
15. Scan frequency ≥ 1920 Hz
There will be one receive card in each cabinet , so that the LED display won' t sparked. Also it is very easy to move and connetct
16. Video Frame Rate ≥ 150 fps
17. Color temperature 6500° K to 9500° K adjustable
18. Control method Controlled by PC, synchronous display
19. Life span( half brightness) ≥ 100, 000 hours
20. Weight 70Kg /sqm
21. IP rate IP65 ( front side and rear side)
22. Average power consumption 400W/sqm
23. Peak power consumption 800W/sqm
24. Input voltage AC220V/50Hz ± 10% or AC110V/60Hz ± 10% or AC380V/60Hz ± 10%
25. Operating Environment Temperature: -20+60 Humidity: 10%95%RH
26. Operating system Windows 98/2000/ME/XP
27. Type of video signal S-video, composite video, RGB, VGA, DVI
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Q1:What are you Additional service
A1:We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Q2:Are you factory? and your warranty?
A2:yes we are 7 years factory, 2 years warranty and lifetime maintenance ;
Q3:what is LED display?
A3:LED full color led display is composed of many LEDs. One pixel is made up of three colors of LEDs, colors of LED can be divided into R.G.B.led display screen can show letters,, images and so on.
Q4:What's the function of your led screen?
A4:It supports videos, flash, WAV/MIDI, PPT, images and so on ;

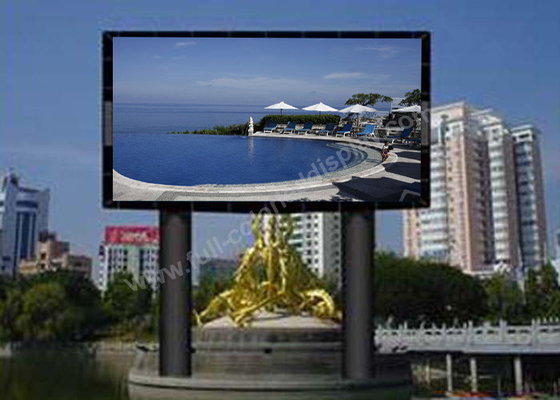

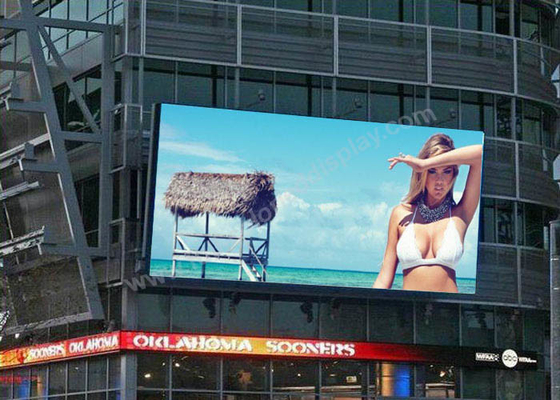

Product case:
