Product Details:
Payment & Shipping Terms:
|
Module Resolution: | 64dots(W)*32dots | Pixel Pitch: | 4mm |
---|---|---|---|
Module Thickness: | 1.3CM | Module Weight: | 0.18kg |
Module Quantity: | 16pcs | Interface: | HUB75-A |
Product Model: | P4 Indoor Full Color LED Module | Optimal Viewing Distance: | 4M~20M |
Scanning Method: | 1/16scan | Pixel Density: | 62500dots/m2 |
High Light: | Led Video Screen Hire,Ultra Thin Led Screen |
indoor rental 512mmx512mm-P4.pdf
Tri-color P4 Indoor Rental LED Display panel video wall with electronic Plug
P4 Indoor Rental LED Display panel video wall description:
P4 Indoor Rental LED Display panel video wall parameter:
Modules | Items | Parameter |
Product Model | P4 Indoor Full Color LED Module | |
Module size | 256mm*128mm | |
Module resolution | 64dots(W)*32dots | |
Pixel pitch | 4mm | |
Pixel density | 62500dots/m2 | |
Pixel configuration | 1R1G1B | |
Module maximum power consumption | 18W | |
Module Thickness | 1.3CM | |
Module Weight | 0.18kg | |
Driving method | Constant Current Driving | |
Scanning method | 1/16scan | |
Interface | HUB75-A | |
Brightness | ≥1500cd/m2 | |
cabinets | Cabinet size | 512mm*512mm |
Module quantity | 16pcs | |
Power supply | 5V/40A 5V/60A | |
Cabinet resolution | 128*128dots | |
Optimal viewing distance | 4M~20M | |
Optimal viewing angle | 160°(W) 120°(H) | |
RHWorking temperature | (Work :-20°C~+60°C) | |
System operating humility | 10%-95% | |
The specifications of power supplier | ||
Operating Voltage | AC220V±10% | |
Average power consumption | 350W/H | |
Maximum power consumption | ≤160W/m2 | |
Electric current | ≤20mA(single LED) | |
Control system | Control Panels | Pentium4 or above |
Operating system | WIN98/2000/NT/XP | |
Control model | Synchronization with PC | |
The specifications of the main technical parameters | ||
Driving device | Constant Current Driving | |
Refresh rate | ≥3840HZ | |
Grey scale | RGB Each 256, can display 16.7M colors) | |
MTBF | ≥9000hours | |
Power switch | Automatic Switch | |
Display Mode | 800*600/1024*768/1280*900 | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |

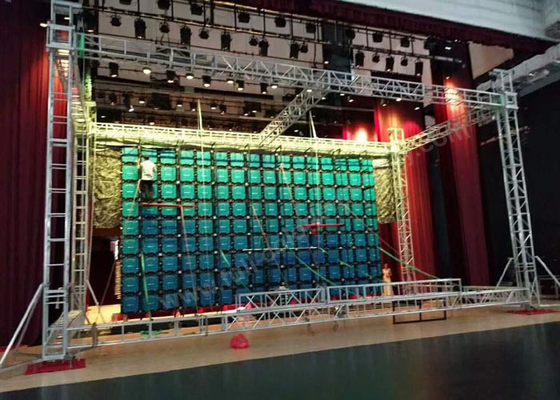

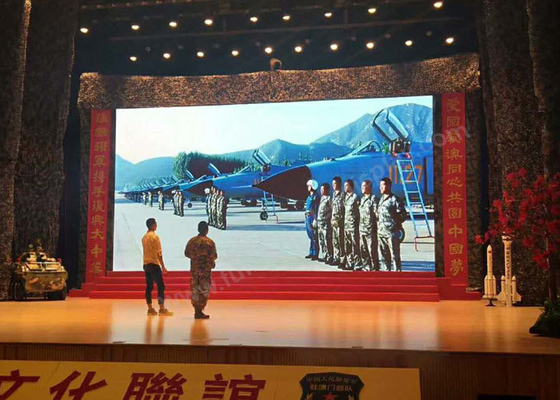

P4 Indoor Rental LED Display panel video wall project case:
