Product Details:
Payment & Shipping Terms:
|
Tube Chip Color: | Full Color | Display Function: | Text, Picture, Video |
---|---|---|---|
Pixel Pitch: | 2mm | Screen Dimension: | Multiple Of 256mm X 128mm |
Warranty: | 2 Years | Brightness: | 800nits |
Led Chip: | Nationstar | Module Size: | 256mm X 128mm |
Application: | Conference Room | Life Span: | 100000hours |
Pixel Density: | 250000 Dots / Sqm | Cabinet Size: | 512mm X 512mm |
Cabinet Resolution: | 256 Dots X 256 Dots | Refresh Rate: | 1920HZ |
Highlight: | Led Screen Modules,Waterproof Led Module |

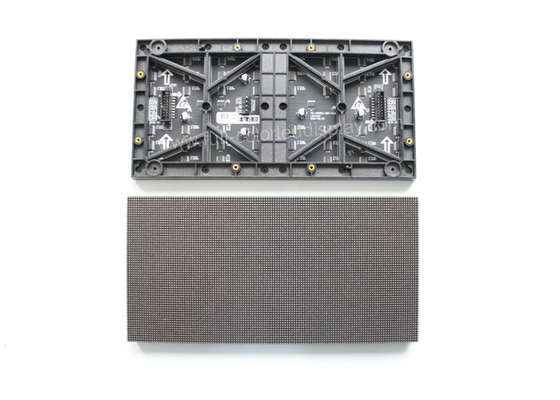

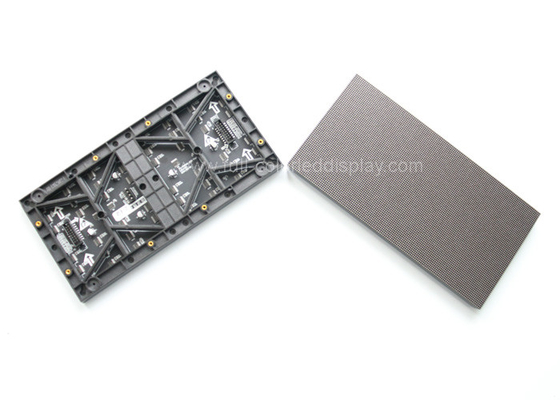

2mm pixel pitch full color indoor led display signs module
2mm pixel pitch module features:
1080P high resolution, 500 dots X 500 dots = 250000dots/sqm, so very high density, and high precision
Seamless splicing, High gray scale, good performance viewing effect
Zero noise, because it adapts die-casting alumium cabinet , so it doesn't need fans
Radiate quickly , because aluminum marterial is heat-conducting
The most effective solution to indoor HD led display billboard
With fast locks and air plug, it is convenient for customer to install and Dismantle
Easy to carry with flight case , Light weight: about 6.5kg/cabinet
2mm pixel pitch module parameters:
Full color indoor led display with die-casting aluminum cabinet for stage | |
Pixed Pitch | 2mm |
LED Module size | 256*128mm |
Physical Density | 250000dots/sqm |
Panel Resolution | 128*64 |
LED Cabinet size | 512*512mm |
LED Control System | Novastar / Linsn / HD |
LED Lamp | Epistar lamp / Nationstar lamp |
IC | MBI5124 / ICN2038S / ICN 2053 |
Power Adapter | G-energy / Meanwell / CL |
Viewing Angle | 170 Deg |
Option Distance | 2-30m |
Power Supply | 5V40A / 5V60A |
Maximum Power | 500 W/ M2 |
Frame Frequency | ≥60 HZ/S |
Refresh Frequency | ≥3840 HZ/S |
Equilibrium Brightness | ≥1000 CD/ M2 |
Working Environment Temperature | -10~600C |
Working Environment Humidity | 10%~70% RH |
Display Working Voltage | AC46~54HZ,220V±15%/110V±15% VAC |
Gray Scale/Color | ≥16.7M color |
Input Signal | RF S-Video RGB etc |
Mean Free Error Time | >5000 HOURS |
IP Rating | The back IP40,The front IP50 |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our Company:
Our company shenzhen LED world has 10 years production experience, and exports high quality LED display to the world . We have factories and offices in shenzhen, China.The company has SMT production line, hiting screw production line, assembly line and other 10 production lines. We have about 100 highly skilled workers, sales staff and engineers.Welcome to visit our LED world in shenzhen.
Applications:
