Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.0 Mm | Pixel: | 1R1G1B |
|---|---|---|---|
| Driving Method: | 1/20 Scan | Control Method: | Synchronization |
| Gray Scale: | 65536 | Color Temperature: | 3200-9300k |
| Working Voltage: | AC220V/110V±10% | Configuration: | SMD 3-in-1 |
| Pixel Density: | 111111dots/m2 | Module Pixels: | 80 X 40 Pixels |
| Screen Size: | Customized | Led Lifespan: | 100000hours |
| Operating Humidity: | 10% - 90% | IP Rating: | IP20 |
| High Light: | Led Screen Modules,Waterproof Led Module |
||

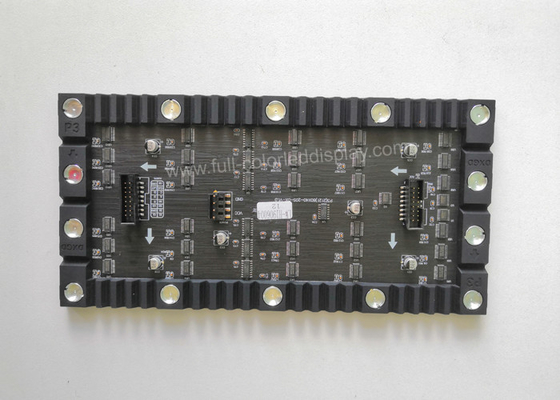

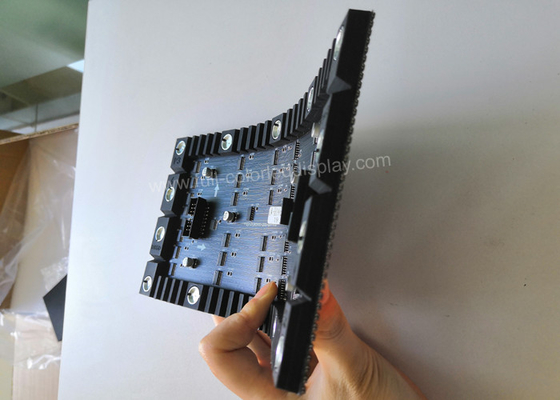

Indoor full color P3 convenient soft for flexible any shape led display screen module
P3 soft led module Features:
P3 soft led module Parameters:
| P3 SMD1515 Indoor full Color soft LED Module | |
| Pixel pitch | 3.0 mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD1515 |
| Size of module | 240mm x 120mm x 1.6mm (thickness) |
| Resolution of module | 80x40 pixels |
| Brightness | >1000cd/sq.m |
| Density | 111111 dots/sq.m |
| Best viewing angle | 160° /120° |
| Best viewing distance | 3-30M |
| Maximum power consumption | 25W/module |
| Driving method | 1/20 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 50,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
