Product Details:
Payment & Shipping Terms:
|
| Video Frame Rate: | 60 | Input Power(max)(W/m2): | 400 |
|---|---|---|---|
| Input Power(nor)(W/m2): | 150 | Input Voltage (V): | 100 ~ 240V AC, 47 ~ 63Hz |
| Performance Temp: | -20 ~ 50ºC | Storage Temp: | -40 ~ 80ºC |
| Humidity Operating: | 10%~90%RH | Lifetime(hours): | ≥10000 |
| Discrete Out Of Control: | ≤0.0001 | Scotoma Rate: | ≤0.0001, |
| High Light: | transparent led screen display,transparent led curtain display |
||

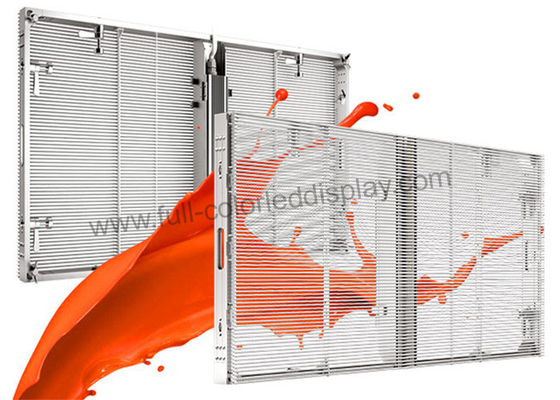

P7.81 Glass Full Color Mesh Curtain Transparent LED Video Wall display
P7.81 Transparency LED Display Feature:
Long life, only need to replace the lamp bar, do not need to replace the whole module
Outdoor standard packaging LED lights, uv resistance
The screen is barely visible from 10 meters of view.
Exquisite and tasteful appearance due to structural wire layout
Ultra power saving, only with 1/3 power consumption of traditional screen
P7.81 Transparency LED Display Parameter:
| Transparent LED screen Parameters | |
| Model | LW-T7 |
| Pixel Pitch(mm) | 7.8 × 7.8 |
| Module size(mm) | 1000 × 500 |
| Pixel(pixels/pcs) | 128 × 64 |
| Pixel density (pixels/m2) | 16384 |
| Pixel configuration | SMD 3in1 |
| Video frame rate | |
| Brightness(cd/m2) | 2500 |
| Horizontal viewing angle | 160° |
| Vertical viewing angle | 120° |
| transparency | 85% |
| Gray scale | 16384 |
| Driving method | 1/8 scan |
| Display refresh rate | 3840 |
| Video frame rate | 60 |
| Operation state | |
| Input power(max)(W/m2) | 400 |
| Input power(nor)(W/m2) | 150 |
| Input voltage (V) | 100 ~ 240V AC, 47 ~ 63Hz |
| Performance temp | -20 ~ 50ºC |
| Storage temp | -40 ~ 80ºC |
| Humidity operating | 10%~90%RH |
| Lifetime(hours) | ≥10000 |
| Lifespan (hours) | 100000 |
| Discrete out of control | ≤0.0001, |
| Continuous out of control | 0 |
| Scotoma rate | ≤0.0001, |
| Protect lvl(Front/Reverse) | IP42 |
| Product features | |
| Installation | Lifting / Vertical loading |
| Border bevel | 45° |
| Arc splicing | ≥90° |
| weight(kg/m2) | 10 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
