Product Details:
Payment & Shipping Terms:
|
| Pixel pitch: | 2mm | LED type: | SMD1515 |
|---|---|---|---|
| Module Size (w*h*d): | 240mm*120mm*7mm | Module Resolution (w X H): | 120×60dots |
| Pixel Density: | 250000dots/m2 | Brightness: | ≥1000 Cd/m2 |
| Refresh Frequency: | ≥1920HZ | Driving IC: | MBI5124 |
| Driving Mode: | 1/30 Scan | Weight Of Module: | 0.17KG |
| High Light: | Advertising Led Display,Indoor Led Display Screen |
||

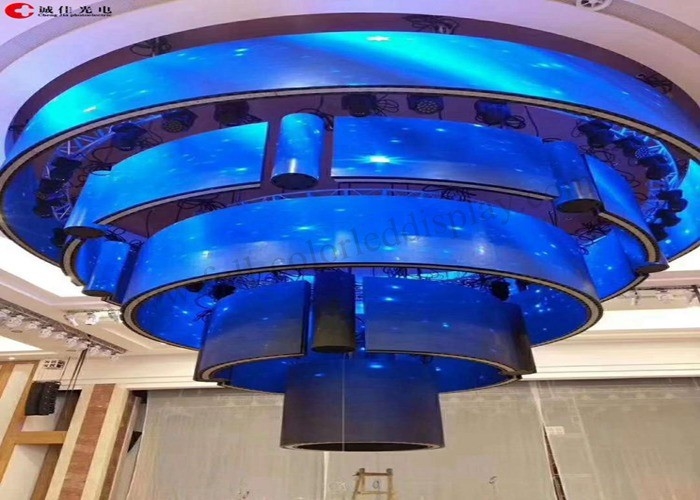

P2 Flexible Led Video Wall 1/30 Scan 240X120mm High Definition
P2 Flexible Led Video Wall Feature:
P2 Flexible Led Video Wall Parameter:
| Item | Parameter |
| Pixel pitch | 2mm |
| LED type | SMD1515 |
| Module Size (w*h*d) | 240mm*120mm*7mm |
| Module Resolution (w x h) | 120×60dots |
| Pixel Density | 250000dots/m2 |
| Brightness | ≥1000 cd/m2 |
| Refresh frequency | ≥1920HZ |
| Driving IC | MBI5124 |
| Driving mode | 1/30 Scan |
| Weight of module | 0.17KG |
| Viewing Angle | 360° view |
| Max.Power Consumption | ≤700W/m2 |
| Avg.Power Consumption | ≤280W/m2 |
| Control System | Nova/Linsn/Dbstar |
| Operation System | Windows XP/7/10 |
| Working-Temperature | -20ºC~60ºC |
| Working Humidity | 10%~90% RH |
| Input Voltage | AC 110~220 V |
| Blind spot rate | ≤0.01% |
| MTBF | 50000 Hour |
| Lifespan | 100000 Hour |
| Grey scale/colors | 14 bits |
| Working voltage | AC220V±10% |
| Current | ≤20mA(single LED) |
| Control system | CPU Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7/8/10 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our Advantage:
Quality advantage: From material to finished product, from design to produce, we control all steps. Good heat dissipation capability because of the unique design of vent fan.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.No mosaic display due to excellent flatness and nice uniformity of light-emitting.
Low Has excellent heat dissipation design and performance It is low noise and doesn t need external fan or air-condition With the features of lightweight and low power consumption it can reduce the labor cost of installation and operating cost
Price advantage, Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level
Good thermal design, excellent heat dissipation even no fan installation,
The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
Product Deatails:
