Product Details:
Payment & Shipping Terms:
|
Pixel Color, Pixel LED: | 1R1G1B, SMD2727 | HUB: | HUB43 |
---|---|---|---|
Frame Frequency,Refresh Frequency,Gray Grade: | 60Hz,1920Hz,12bit | Driving IC,Driving Way: | MBI5020B Or MBI5124,1/8 |
Working Voltage,Module Power: | DC5V,75W | Display Function: | Video |
Application: | Outdoor Video Shows | Power Supply: | Meanwell Optional |
High Light: | led panel rental,led screen hire |
outdoor rental 640x640mm-P5,P8,P10.pdf
High Precision P5 Outdoor Rental Hanging LED Display Panel With No Fans Design
P5 outdoor rental LED display panel quick detail:
P5 outdoor rental LED display panel parameter:
Module Parameter | Item | Specification Parameter |
Pixel Pitch,Resolution rate,size | 5mm,64*64,320*320*17mm | |
Pixel color, Pixel LED | 1R1G1B, SMD2727 | |
Working voltage,Module Power | DC5V,75W | |
Driving IC,Driving way | MBI5020B or MBI5124,1/8 | |
HUB | HUB43 | |
Cabinet Parameter | Material,Cabinet Weight(kg/Cabinet) | Cast aluminum,14kg/Cabinet |
Resolution rate,size,Module quantity | 128*128,640*640*88mm,2X2 | |
Density | 40000/ | |
White balance ,Color temperature | 6000 CD/,6500K | |
view angel,Non-Flatness,Module interval | H:120°;V:120°,<0.4mm,<0.4mm | |
Maximal power ,Average power | 850W , 280W | |
Frame frequency,Refresh frequency,Gray grade | 60Hz,1920Hz,12bit | |
Control system,System supports | Colorlight/Novastar / Linsn /,Windows XP,WIN 7, | |
Working temperature,Protection grade | -20ºC - +50ºC,Front/Back:IP65/IP65 | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
P5 outdoor rental LED display panel application:
We can see P5 outdoor Full Color LED Display Screen in many occasions,It can be widely used in propaganda image, like Open Air exhibitions,Convenience Stores,Building facilities,show,plaza,large shopping mall, banquet,communities, cinema, high speed railway station,restaurant,Audio visual rental field,conferance center , live broadcast, insurance company,government project,information center,government agencies,municipal public buildings,the studio center,TV studio,country club,high speed railway station,commercial buildings,motor racing Circuits and so on .

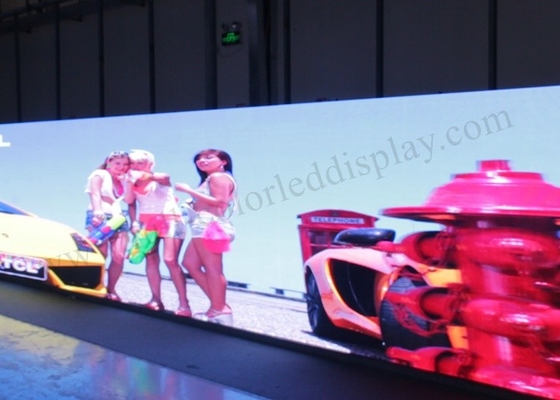

P5 outdoor rental LED display panel detail:
Package:
