Epistar Rental Led Display Screen Backlit TP10 1R1G1B With 640x640mm Cabinet



outdoor rental 640x640mm-P5,P8,P10.pdf

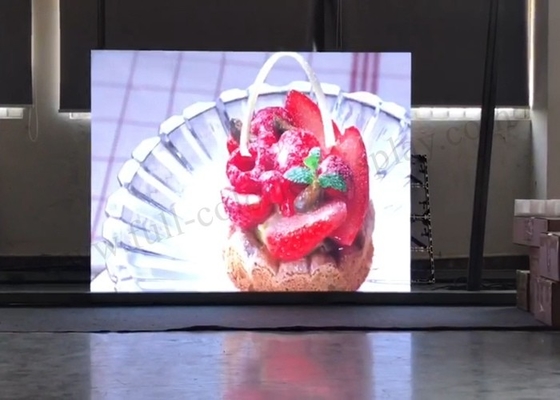

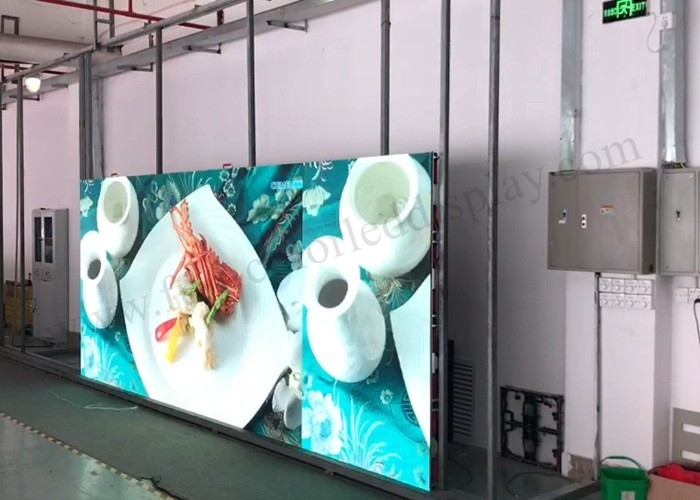

P10 1R1G1B Epistar Outdoor LED Rental Backlit Thin Screen With 640x640mm Cabinet



P10 Outdoor Rental LED Display Brief Description:

• Pixel available for 640mm cabinet:5mm,8mm,10mm;
• Module size:320x160mm;cabinet size:640x640mm;
• High brightness:>7000 nits;
• Stable quality:Opto + Silan chipset;



P10 Outdoor Rental LED Display features:

• Connected and controlled by PC via Lan and remote control;
• Curve degrees can be adjusted accordingly to different requests of architectural design;
• High Refresh Rate reach to 3000Hz or more;
• Other available LED lamp option: Nationstar, Kinglight. Available IC : Sunmoon;
• Both front access and rear access are avaiable5. High color uniformity and clear image can bring you a vivid audio visual effect;
• Angle regulator connects the cabinets horizontally, 0-15 degree adjustable from frontage and rear, only 10 seconds for per cabinet;
• Save 35% power than normal screens;





Our full color LED display are widely used in leisure square, schools,large shopping mall, monitoring centers,shopping malls,High end hotel,trade fair,banks, Churches,entertainment,restaurant,station weiting area, conferance center, Outdoor Signage and advertisement,travel agency and so on .





Item	Specification Parameter
Pixel Pitch	10 mm
Material	Cast aluminum
Color	Silver gray
Cabinet Size	640*640 mm
Resolution rate	64*64Dots
Module quantity	2*2
Density	10000dots/
White balance luminance	≥6000CD/M2
Color temperature	6500K--8000K
view angel	H:120;V:120
Protection grade	Front:IP65
Non-Flatness	<0.5mm
Module interval	<0.5mm
Cabinet Weight	16kg/Cabinet
Gross Weight(kg)	89kg(Estimated data)
Outer Package Size	780*740*940mm(Estimated data)
Maximal power/	500W/
Average power/	200W/
Frame frequency	≥60Hz
Refresh frequency	1920Hz
Gray grade	14bit
Luminance adjusted	256 grade by auto-optic/color &8 grade by hand
Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Control system	Novastar / Linsn /
system supports	Windows XP,WIN 7,
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
