Product Details:
Payment & Shipping Terms:
|
Pixels: | 10mm | Usage: | For Advertising |
---|---|---|---|
Cabinets Size: | 960x960mm | Color: | Full Color |
Cabinet Type: | Iron Cabinets | Brightness: | >6500cd/sqm |
Life Span: | 100000hours | Drive Mode: | 1/8 |
Lamp: | SMD3535 | Application: | Stadium Activity |
Refresh Rate: | ≥1920 Hz | Module Size: | 320mm*160mm |
High Light: | 100W Full Color Led Display,6500nits Full Color Led Display,SMD3535 Outdoor Advertising LED Display |

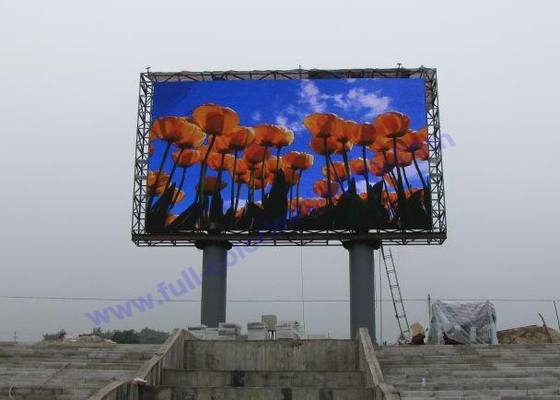

P10 Full Color Led Display Outdoor Advertising High Definition For Stadium Activity
Parameters:
Items | P2.5mm | P3mm | P4mm | P5mm | P6mm | P10mm |
Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm | 10mm |
Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 | 10,000 |
Module Size(mm) | 160x160 | 192x192or 192x96 | 256x128 | 160x160or 320x160 | 192x192 or 384x192 | 320x160 |
Pixels/Module | 64x64 | 64x64or 64x32 | 64x32 | 32x32or 64x32 | 32x32or 64x32 | 32x16 |
Cabinet Size(mm) | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 | 960x960 |
Pixels/Cabinet | 384x384 | 320x320 | 256x256 | 192x192 | 160x160 | 96x96 |
Cabinet Weight | 37KG | 37KG | 42KG | 37KG | 37KG | 37KG |
Brightness | 1300cd/ | 1300cd/ | 1300cd/ | 1300cd/ | 1300cd/ | 1000cd/ |
Viewing Distance | >2.5m | >3m | >4m | >5m | >6m | >10m |
Power Consumption | Max: 800 | Max: 800 | Max: 650 | Max: 400 | Max: 400 | Max: 300 |
(W/) | Ave: 240 | Ave: 240 | Ave: 195 | Ave: 120 | Ave: 120 | Ave: 100 |
Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan |
Features:
1. Uniform color and high contrast ratio, bringing up the fresh and natural image ;
2. Low power consumption and fine heat release ;
3. Super wide viewing angle increasing its value by covering more audience ;
4. No deformation under sunlight by the use of anti-UV modules ;
5. High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function ;
6. Safe and reliable operation ensured by stable signal and power supply;
After-sales maintenance
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC and 60ºC when you receive the goods from the customs
2. Install and use the product
Please adopt a preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it. Keep it work 8 hours or above continually per day will be better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use a soft brush to clean the display surface and PROHIBIT any liquid when doing the cleaning.
Application:
Business Organizations | supermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
Financial Organizations | banks, security companies, insurance companies, post offices, hospitals, schools, etc. |
Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
