| Size Of Cabinet(mm): | 1024*1024mm | Viewing Angle: | H: 120°; V: 120° |
|---|---|---|---|
| Weight Of Module (Kg): | 41Kg | Size Of Module: | 320*160mm |
| LED Encapulation: | SMD3535 | Equilibrium Brightness(CD//m²): | ≥5500 CD/m² |
| Driving Method: | 1/8 | Pixel Pitch(mm): | 8mm |
| High Light: | 8mm Pixel Outdoor Fixed LED Display,Outdoor Fixed LED Display SMD3535,5500nits Outdoor Advertising Led Display |
||

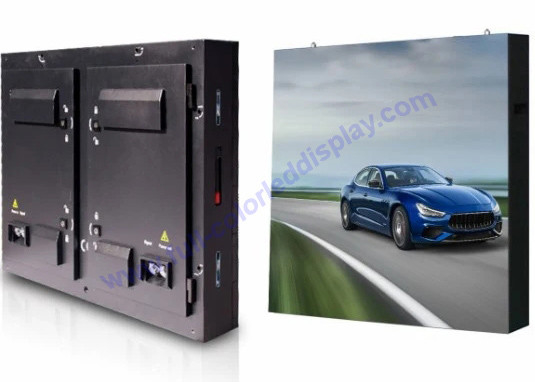

P8 Outdoor LED Display With Fast Lock And Nova Or Linsn System For Making A TV Show
P8 outdoor LED Display panel sign features:
1. Uniform color and high contrast ratio, bringing up the fresh and natural image ;
2. Low power consumption and fine heat release ;
3. Super wide viewing angle increasing its value by covering more audience ;
4. No deformation under sunlight by the use of anti-UV modules ;
5. High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function ;
6. Safe and reliable operation ensured by stable signal and power supply.
P8 outdoor LED Display panel sign parameter:
| Parameter | P8 outdoor | ||||||||||
| Pixel pitch | 8mm | ||||||||||
| LED Type | SMD3535 | ||||||||||
| Scan Styple | 1/8 | ||||||||||
| Pixel pitch density | 27777 dots/m2 | ||||||||||
| Module size(mm) | 320×160 mm | ||||||||||
| Panel Size(mm) | 1024×1024 mm | ||||||||||
| Refresh rate | >2800 | ||||||||||
| Brightness | >5500nits | ||||||||||
| Max Power/ panel | 1200W/sqm | ||||||||||
| Weight per cabinet | 41KG | ||||||||||
| Best viewing distance | 8M | ||||||||||
| Cabinet material | Die-casting aluminum | ||||||||||
| Operating temperature | ,-20ºC----+50ºC( Special power supply can meet -40ºC-----+60ºC) | ||||||||||
| Operating humidity | 10%---%95RH | ||||||||||
| Operating system | Windows 2000 / Windows XP / Windows 7/win8 /win 8.1 | ||||||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||||||||
Our Company:
Shenzhen LED World Co., LTD is also known as SZLEDWORLD, is a one-stop manufacturer and integrated solution supplier in the LED display field, established in Shenzhen, China in 2009. After years of continuous efforts, the company has grown to be a leading supplier of LED display service, and OEM & ODM service.
We focus on Outdoor/Indoor LED Displays, Rental stage LED screens, Advertising LED billboards, Transparent LED Displays, LED Posters, Flexible LED screens, and other Custom LED Displays.
We have professional teams in several countries, such as Europe, the USA, Nigeria, Southeast Asia countries, South Africa, Australia, etc. so you are very fortunate that we can provide the technical support in your local, such as installation, software operation, clearance and so on.
FAQ:
1. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the details of the requirements.
2. Do you test all your goods before delivery?
Yes, we have a 100% test before delivery.
3. How about your delivery time?
Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your trade term?
EXW CFR FOB CIF DDP
P8 outdoor LED Display panel details:
