Product Details:
Payment & Shipping Terms:
|
| IP Grade: | IP65 | Pixel Pitch: | 7.8 |
|---|---|---|---|
| Color: | RGB | Module Size: | 250x250mm |
| Cabinet Material: | Aluminum | Viewing Distance: | >3m |
| Configuration: | SMD1921 | Cabinet Weight(: | 8 Kg |
| High Light: | 1920Hz Glass Led Wall,32768 Dot/M2 Glass Led Wall,ROHS Transparent LED Video Wall |
||

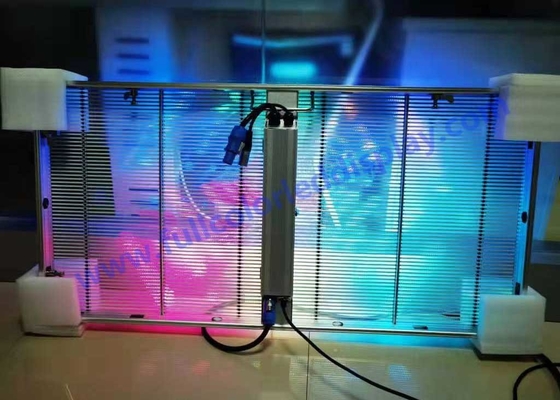

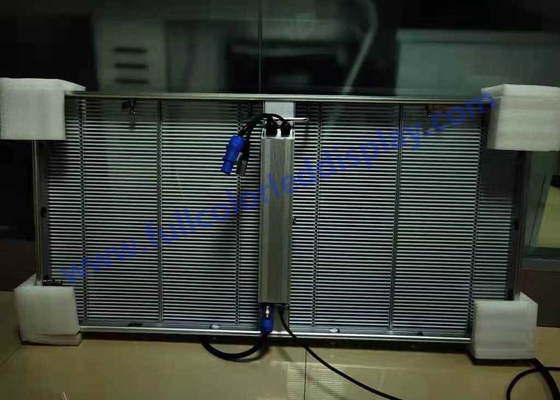

Full-Color HD Advertising Ultra Thin Glass Led Wall Fresh Rate ≥1920Hz With 32768 Dot/M2 Density
Features:
1. Featured with high transparency, Transparent LED Screen can be used in any place that has glass walls.
Highly usable at places like banks, shopping malls, theaters, commercial-stage,
chain stores, hotels, public buildings and landmark buildings,s, etc.
2. The Transparent LED Screen for Shopping malls is only 75mm thick
which makes it ultra-lightweight and space-saving.
Can be installed in any area without requiring much space.
The light weight of 5kg/panel LED screen is easy to carry,
transport, and install - saving a good amount of money on your labor costs.
Specification:
|
Name
|
Technical parameters | |||
| 1,Pixel | Pixel pitch:3.91 -7.8 mm Color:1R1G1B Density:32768 dot/m2 |
|||
| 2,Module | Module resolution: width 128 × height 16 Module size: 500mm×125mm Total image number of the unit board: 2048 dots/pcs |
|||
| 3,Whole screen | The horizontal viewing angle of the screen: is 90°-110° The vertical viewing angle of the screen: 45°- 90° Best viewing distance: 3～200M Storage temperature: -40℃ ～ +85℃ Working temperature: -25℃ ～ +55℃ Relative humidity: 10%～95%RH Screen weight: 7 kg/㎡ Cabinet size: 1000MM*500MM Light transmittance: ≥70% Material: die-cast aluminum |
|||
| 4,Power | Working voltage: 220V±15% Power supply: 5V40A200W Average power consumption: 400～1000 W/㎡ (related to the video source being played) Maximum power consumption: 1000W/㎡ Average power: 400W/㎡ Power supply requirement: 220VAC±10%, 50Hz |
|||
| 5,The main technical parameters | 1) Drive device: constant current drive IC 2) Drive mode: 16 scans 3) Refresh frequency: ≥1920Hz 4) Brightness: ≥2000d/m2 5) Control system adopted: synchronous control system 6) Mean time between failures: ≥10000 hours 7) Screen life: ≥100000 hours; continuous working time: ≥48 hours 8) Flatness: between any adjacent pixels ≤0.5mm; module splicing gap |
|||
Our service:
1. OEM Manufacturing welcome: Product, Package...
2. Customized and professional products.
3. We will reply to your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products.
When you got the goods, test them, and give me feedback.
If you have any questions about the problem, contact us, and we will offer the solve way for you.
5. 2 years warranty will be provided by us.
Advantage:
1. The Transparent LED Screen for Shopping Malls is known for its silent
operation and low power consumption. It is also known for fast heat dissipation
which will save more energy.
Cut on the electricity expenses and help the environment with this highly advanced advertising display.
2. The thin size and ultra-lightweight modules make it easy to carry, transport, and install.
You hardly need any specialized tools or skills to install it. Everything is inbuilt,
and it can be installed within a few minutes using a simple screw-driver.
