Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle

Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle
Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle

Large Image :  Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-CO 18
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: plywood case or flight case
Delivery Time: 15~20 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm/month
Detailed Product Description
Pixel Density: 3100 View Angle(H/V): 140/70 °
Cabinet Weight: 8 Kg / Cabinet Driving Mode: 1/4 Scan
Gray Scale: 16 Bit Cabinet Resolution: 32 X 32 Dots
IP Rating: IP 65 Pixel Configuration: SMD5050
High Light:

Led Curtain Screen

,

Outdoor Led Curtain

P18 SMD5050 LED Video Curtain display 1/4 Scan screen IP65 576×576×60 mm cabinet



Product description:

  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, event stage etc;
  • 576mmX576mm cabinet is light and thin ,easy for installation ;
  • low power consumption, low noise created, energy-saving 30%;
  • SMD led encapsulation confirm wide view angle;
  • Aluminum cabinets ensure lower weight and lasting;
  • Streamline design and beautiful appearance;
  • High level: High level protection, front and rear can reach to IP65;
  • Slim Aluminum Cabinet,light weight, easy to move and portable, and quick to assemble and dismantle by hands;
  • Widely used for commercial display, event,show,party stage background screen;
  • Back installation for drivers,benefical to maintenance;



Parameter:

P18 Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 18
Pixel Density Dots/sq.m 3100
Pixel Configuration   SMD5050
Cabinet Resolution dots 32×32
Refresh Rate Hz ≥1200
View Angle(H/V) ° 140/70
Brightness nits ≥2500
Gray Scale Bit 16
IP Rating   65
Power Consumption(Max/Avg) W/sq.m 500/150
Input Voltage(AC) V 110~220
Modular Characteristics
Cabinet Size(W×H×D) mm 576×576×60
Cabinet Material
Cabinet Weight Kg 8
Module Size(W×H) mm 576×576
Environment
Operation Temperature ºC -20~+40
Operating Humidity   10%~90%
Driving Mode   1/4 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Our company:

Shenzhen LED World co.,ltd. was founded in 2007, with a registered capital of 15 million Yuan, a workshop covering an area of 9000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.



Why choose us:

  • We have competitive price;
  • The product are high quality;
  • Years of production experience we can very good to control the quality of the product, OEM and ODM accepted;
  • Price Advantage: We have the best competitive price at the market, also have the same even better quality;
  • Quick response: replying inquiry within 12hrs;
  • Quick delivery: 10-25 working days;

FQA:

  • What's the pixel pitch for Outdoor LED Display Screen? Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
  • How about your quality control?
  • Quality control starts from strict raw material purchase.Each product will run through aging test for 72 hours.
  • Are you manufacturer of led display.If yes, in which city?
  • Yes, Our factory with 9000 square meters. And we're in SHENZHEN city, GUANGDONG Province;
  • Where is your company?
  • We are located in address:No.4 Bldg,Second Industrial Park of Baiwang,Baimang Village,Xili street,Nanshan District,Shenzhen,China;
  • What is the payment method?
  • We support a variety of payment methods, the most common is the TT;
  • What kind of display we provide?
  • We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose;

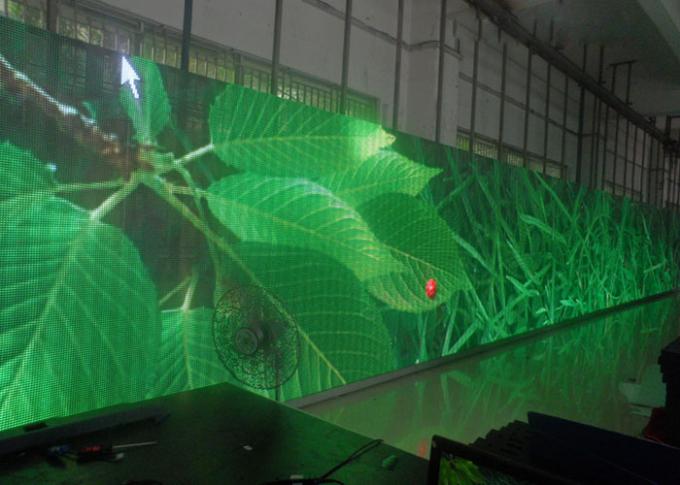

Product aging:

Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle 0

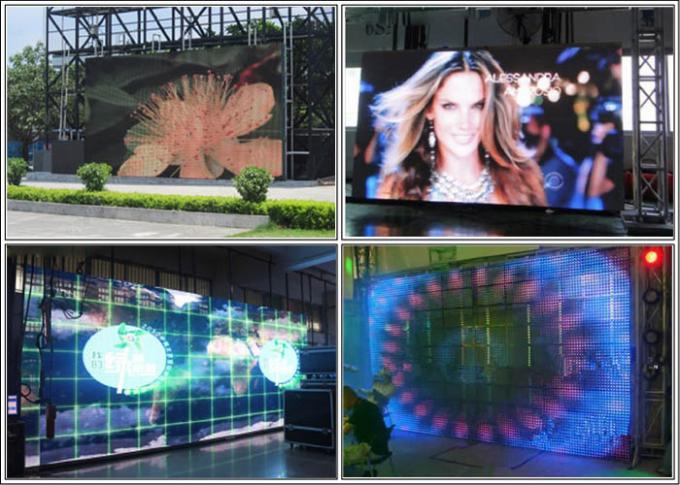

Project case:

Easy Maintenance LED Curtain Display Energy Saving 140 / 70 °View Angle 1
