IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V

IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V
IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V

Large Image :  IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-CO 18.75
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: plywood case or flight case
Delivery Time: 15~20 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm/month
Detailed Product Description
Operating Humidity: 10%~90% Cabinet Material: Aluminum
Pixel Density: 2844 Dots/sq.m Input Voltage(AC): 110~220 V
Operation Temperature: -20~+40 ºC IP Rating: IP65
Pixel Configuration: SMD3528 Power Consumption(Max/Avg): 200/125 W/sq.m
High Light:

Led Curtain Wall

,

Outdoor Led Curtain

Indoor fixed led display_201905211023311.pdf
IP65 waterproof LED curtain display P18.75 5000 cd/m2 for Permanent installation

Product description:

  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
  • Aluminum cabinets ensure light weight and lasting;
  • Good waterproof IP65, long life span>100000Hours;
  • Aluminum cabinets ensure lower weight and lasting,good rust-roof;
  • SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance;
  • High definition, Good uniformity,long life span;
  • Indepent driving circuit,with super thin power supply;
  • Simple: No cooling fan design, no noise, no cooling air conditioner;
  • SMD led encapsulation confirm wide view angle and good stability;
  • apply to the home screen, side screen screen, combinations of awning, floor tile, etc;


Parameter:

P18.75 Outdoor Full Color LED Curtain Main Parameters
Visual CharacteristicsUnitValue
Pixel Pitchmm18.75
Pixel DensityDots/sq.m2844
Pixel Configuration SMD3528
Cabinet Resolutiondots32×32
Refresh RateHz≥1200
View Angle(H/V)°120/120
Brightnessnits≥5000
Gray ScaleBit16
IP Rating 65
Power Consumption(Max/Avg)W/sq.m200/125
Input Voltage(AC)V110~220
Modular Characteristics
Cabinet Size(W×H×D)mm600×600×55
Cabinet Material Aluminum
Cabinet WeightKg7
Module Size(W×H)mm600×600
Environment
Operation TemperatureºC-20~+40
Operating Humidity 10%~90%
Driving Mode 1/4 Scan
Control DistanceCat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Our company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Shenzhen LED World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.

Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
OEM, ODM, Own Brand(LED WORLD).
It export from Year 2011, have Own Export License.


Why choose us:

  • First-rate service;
  • Service advantage: Better service at same situation, better cooperation at same service;
  • Manufacturer: over 9 years;
  • Years of production experience we can very good to control the quality of the product, OEM and ODM accepted;
  • No MOQ;
  • We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001;


Product aging:

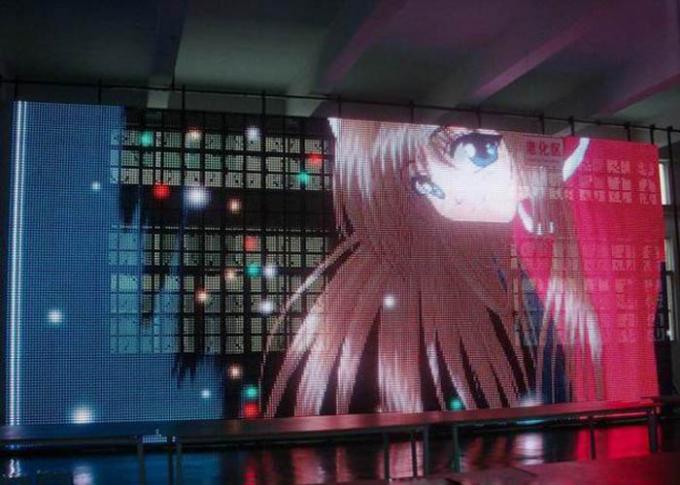

IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V 0

Project case:

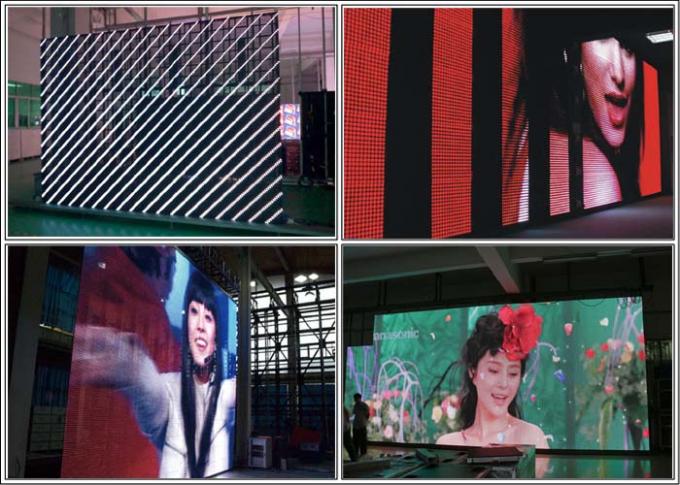

IP65 Waterproof LED Curtain Display Permanent Installation 110~220 V 1
