Product Details:
Payment & Shipping Terms:
|
Driving Method: | 1/8 Or 1/16 Scanning | Frame Frequency: | 60Hz |
---|---|---|---|
Working Voltage: | AC220V/110V±10% | Refresh Frequency: | 3800 Hz |
Gray Scale: | 16bits Per Color | Maximum Power Consumption: | 1200W/sqm |
IP Grade: | IP20-45 | Horizontal Viewing Angle: | 140° |
Colors: | 16777216 | Average Power Consumption: | 600W/m 2 |
High Light: | Led Video Screen Hire,Ultra Thin Led Screen |
P6 Indoor Rental Large LED Display Panels Quick detail:
P6 Indoor Rental Large LED Display Panels parameter:
LED module parameter:
Pixel pitch | 6mm |
Module size | 192mm X 192mm |
Module resolution | 32 X 32 |
Module density | 27777dots/m2 |
Red wavelength | 625±2nm |
Green wavelength | 525±2nm |
Blue wavelength | 470±2nm |
Red brightness | 120-140 MCD |
Green brightness | 360-435 MCD |
Blue brightness | 80- 100 MCD |
Cabinet parameter:
Cabinet Size(mm) | 576x576x80 |
Cabinet Resolution | 96 dots x 96 dots |
Cabinet material | Die-casting |
Electricity parameter:
Pixel configuration | 1R1G1B |
Colors | 16777216 |
Best viewing distance | ≥6m |
Horizontal viewing angle | 140° |
Vertical viewing angle | 120° |
Maximum power consumption | 1200W/sqm |
Average power consumption | 600W/m 2 |
Brightness | 2200-3500cd /m 2 |
Gray scale | 16bits per color |
Driving method | 1/8 or 1/16 scanning |
Frame frequency | 60Hz |
Refresh frequency | 3800 Hz |
Working voltage | AC220V/110V±10% |
IP grade | IP20-45 |
Working temperature | -20°C~80°C |
MTBF | More than 10,000 hours |
Life span | More than 100,000hours |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Advantage:

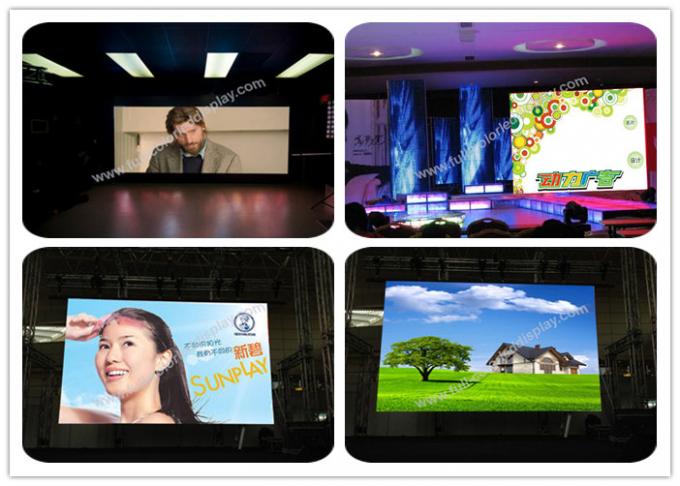

P6 Indoor Rental Large LED Display Panels project case:
