Product Details:
Payment & Shipping Terms:
|
Module Pixel: | 4096 Pixel | Power: | DC 5 V |
---|---|---|---|
Brightness: | 1200 Cd/M2 | Pixel Pitch: | 3.91 Mm |
Cabinet Material: | Die-casting Aluminum | Cabinet Weight: | 7kg |
Refresh Rate: | ≥1,920 Hz | Input Voltage: | AC100-240V/50-60Hz |
Viewing Angle: | H120°V120° | Cabinet Resolution: | 128×128 Dots |
Highlight: | Led Video Screen Hire,Ultra Thin Led Screen |
indoor&outdoor rental tensile 500mmx500mm-P3.91,P4...
P3.91 Advertisement Seamless Rental LED Video Wall Display For Stage Concert Show
Indoor Rental LED Video Wall Display feature:
Indoor Rental LED Video Wall Display describtion:
Indoor Rental LED Video Wall Display Parameters:
LED module and lamps parameter:
No. | Parameter | Value | |||
led type | brightness | Wave Length | H/V Visual angle | ||
1 | Red LED | SMD2121 | 120-140 MCD | 620-625nm | 140°/120° |
2 | Green LED | SMD2121 | 360-435 MCD | 520-525nm | 140°/120° |
3 | Blue LED | SMD2121 | 80- 100 MCD | 470-475nm | 140°/120° |
4 | Pixel pitch | 3.91 mm | |||
5 | Brightness | 1200 cd/M2 | |||
6 | Module size | 250mm x 250mm | |||
7 | Drive model | 1/16 scan | |||
8 | Pixel Configuration | 1R1G1B | |||
9 | Module Resolution | 64 dots x 64 dots | |||
10 | Module pixel | 4096 pixel | |||
11 | Power | DC 5 v | |||
12 | Number of colors | 16bit |
LED cabinet parameter:
Cabinet Resolution | 128×128 dots |
Cabinet Size | 500X500 mm |
Cabinet Weight | 7 KG |
Cabinet Material | Die-casting Aluminum |
Electricity parameter:
Viewing Distance | >4m |
Viewing Angle | H120°V120° |
Refresh Rate | ≥1,920 Hz |
Maximum Power Consumption | 650 W/m2 |
Average Power Consumption | 230 W/m2 |
Drive Mode | Constant current |
Brightness | ≥1,200 CD/ m2 |
Input Voltage | AC100-240V/50-60Hz |
Life Span | 100,000 hours |
Working Temperature | -20°C~60°C |
Working Humidity | 10%RH~90%RH |
Gray Scale | 14 bit |
IP Grade | IP31 |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Why choose us:

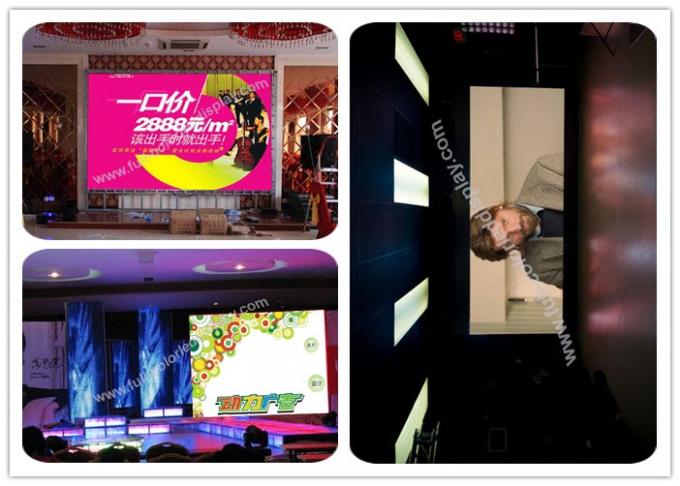

Indoor Rental LED Video Wall Display Project case:
