Product Details:
Payment & Shipping Terms:
|
| IP Grade: | IP67 | Cabinet Material: | Aluminum |
|---|---|---|---|
| Drive Model: | 1/8 | Pixel Pitch: | 2.976 |
| Configuration: | SMD1921 | Function: | Events |
| Viewing Distance: | >3m | Cabinet Weight(: | 7.5 Kg |
| High Light: | IP67 Aluminum Led Wall Screen,SMD1921 Led Wall Screen,Seamless Stage Indoor Rental LED Display |
||

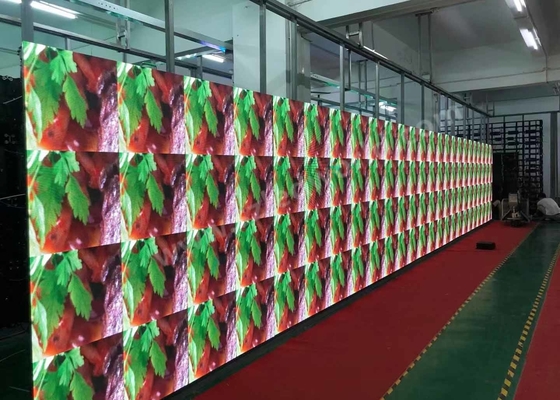

Full-Color Seamless Stage Led Wall Screen SMD 1921 With High Brightness
Features:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without a tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for a nice image.
Specification:
| Pixel Pitch | 2.6 | 2.976 | 3.91 | 4.81 |
| Pixel Density(dot/sqm) | 147456 | 112896 | 65536 | 43264 |
| LED Type | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Scanning | 1/32 | 1/21 | 1/16 | 1/13 |
| Module Size(mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Cabinet Size(mm) | 500x1000 | 500x1000 | 500x1000 | 500x1000 |
| Cabinet Weight(kg) | 12 | 12 | 12 | 12 |
| Cabinet Resolution | 192x384 | 168x336 | 128x256 | 104x208 |
| Cabinet Material | Diecasting Aluminum | Diecasting Aluminum | Diecasting Aluminum | Diecasting Aluminum |
| Brightness(cd/sqm) | 1000 | 1000 | 1200 | 1200 |
| Maximum Power Consumption | 800 | 800 | 800 | 800 |
| Average Power Consumption | 270 | 270 | 270 | 270 |
| Horizontal Viewing Angle(Deg) | 160 | 160 | 160 | 160 |
| Vertical Viewing Angle(Deg) | 160 | 160 | 160 | 160 |
| Grey Scale(bit) | 16 | 16 | 16 | 16 |
| Refresh Rate(HZ) | 3840 | 3840 | 3840 | 3840 |
Product Description:
1, to avoid collision between PCB and package due to static electricity
2, V design bottom shell can make the shape of cylindrical screen more round, and the shape of wave screen radian average
3, V design can be of great help to the cooling of modules
4, The magnet adopts a full hollow-out design with good magnetic force
FAQ:
Q. How long time is needed to produce?
A. Our production time is 3-15 working days.
Q. How long does shipping take?
A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different countries.
Q. What trade terms do you support?
A. We usually do FOB, CIF, DDU, DDP, and EXW terms.
Q. This is the first time importing, I don’t know how to do it.
A. We offer DDP door-to-door service, you just need to pay us, then wait to receive the order.
Q. Do I need to buy other equipment to install the LED screen?
A. You just need to prepare structure and installation tools.
Q.What is the LED screen's common size?
A.16:9 and 4:3 aspect ratio is popular.
